Model Number:
GR3-22A-A
الوثيقة:
Double-arch structure for energy absorption and impact resistance
| Attribute | Value |
|---|---|
| Accessories | NEt |
| Installation Type | Horizontal/Vertical |
| Shock Resistance | 20g/11ms |
| Mounting Type | Loop End |
| Wire Rope Construction | 7x19 |
| Damping Ratio | 0.5 |
| Mounting Thread Size | M3 |
| Drawing Format | DWG and PDF |
| Manufacturer | Hoan Company |
| Relative Product | Backdraft Damper |
| Applicable Industries | Energy & Mining |
| Product Certification | ISO 9001 |
| Weight | 2.2kg |
| Vibration Isolation Range | 0.5 to 10 Hz |
| Axial Stiffness | 50N/mm |
GR3 Series

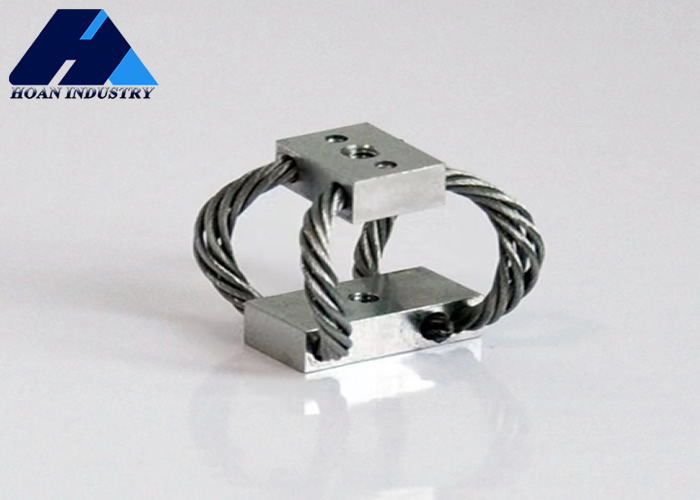

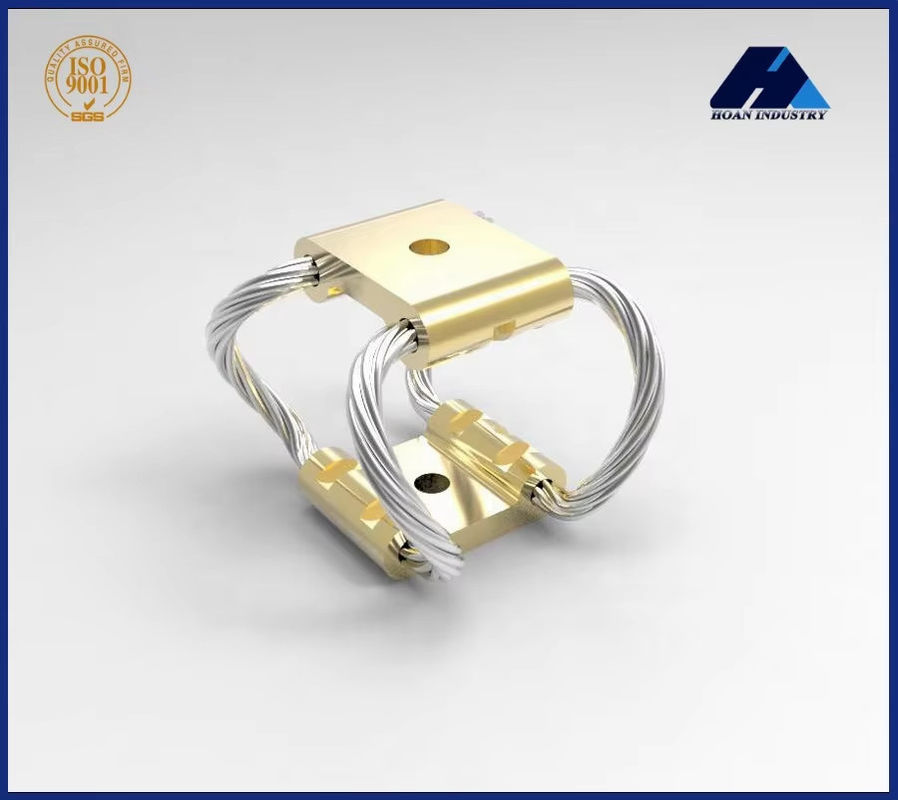

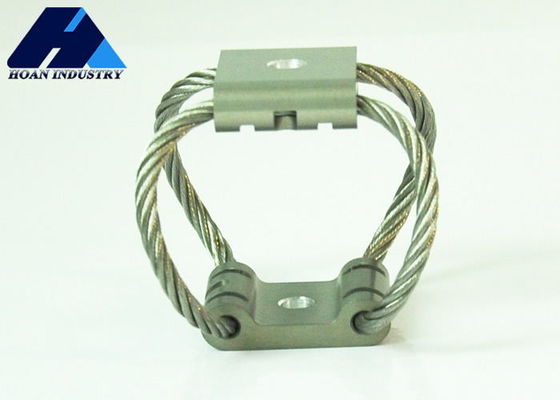

Overcoming Rigidity with Flexibility - The GR3 butterfly-shaped steel wire rope vibration isolator from Xi'an Hoan Microwave Co., Ltd. is designed for harsh environments requiring impact resistance and vibration isolation.
The core protection mechanism stems from its nonlinear hysteretic damping characteristics. When equipment encounters sudden impacts, the special steel wire rope network responds rapidly, converting kinetic energy into heat energy for dissipation. This process significantly reduces peak impact acceleration transmitted to protected equipment.
The butterfly-shaped double-arch structure provides superior deformation space and energy distribution paths, effectively dispersing impact loads while preventing stress concentration. Compared with traditional rubber vibration isolation pads or metal springs, GR3 offers high damping, large deformation capacity, and anti-overload characteristics.
| No. | Model | Max Static Load (N) | Max Deflection (mm) | Kv(Vibration) (KN/m) | Ks(Shock) (KN/m) |
|---|---|---|---|---|---|
| 1 | GR3-30A-A | 30 | 7.1 | 24 | 12 |
| 2 | GR3-22A-A | 22 | 10.4 | 12 | 6.1 |
| 3 | GR3-18A-A | 18 | 14.2 | 8.4 | 3.5 |
| 4 | GR3-11A-A | 11 | 19.3 | 5.8 | 1.9 |
Mounting splint material: Stainless Steel or Aluminum can be selected
A: We are a manufacturer, not a trading company. We produce our products in our own facilities, ensuring full control over the quality and production process.
A: Yes, we can customize our products to meet your specific needs. Please contact us with your requirements.
A: Samples typically take 2-5 days. Mass production usually takes 7-20 days, with faster delivery when we have stock.
A: Yes, sample orders are accepted.
A: Worldwide shipping service is available. Please contact us before ordering as shipping costs vary.
A: Yes, we offer discounts for bulk orders. The discount percentage depends on order quantity.
