Place of Origin:
China
اسم العلامة التجارية:
Hoan
إصدار الشهادات:
ISO9001:2015
Model Number:
GR3-18A-A
الوثيقة:
فيديو
| Attribute | Value |
|---|---|
| Compression Ratio | 1:2 |
| Weight | 0.5kg |
| Wire Rope Diameter | 2.4mm |
| Overall Width | 27mm |
| Installation | Wall Mounted |
| Mounting Type | Loop to Loop |
| Durability | High |
| Certifications | ISO 9001 |
| Manufacturer | Hoan Company |
| Function | Damping |
| Usage | Air Conditioning Terminal |
| Wire Rope Material | Galvanized Steel |
| Isolator Type | Helical |
| Spring Constant | 50N/mm |
| Axial Stiffness | 50N/mm |

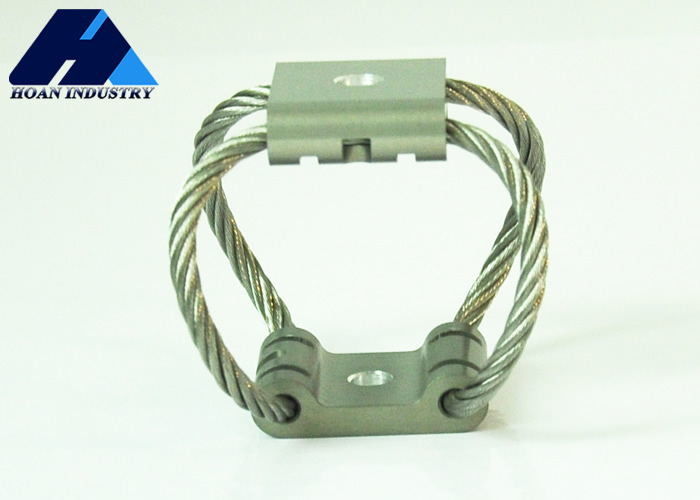

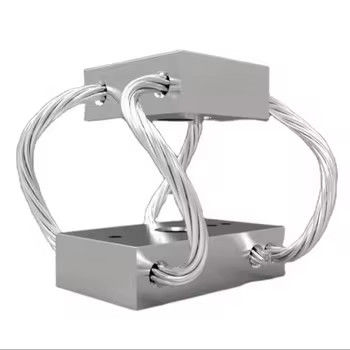

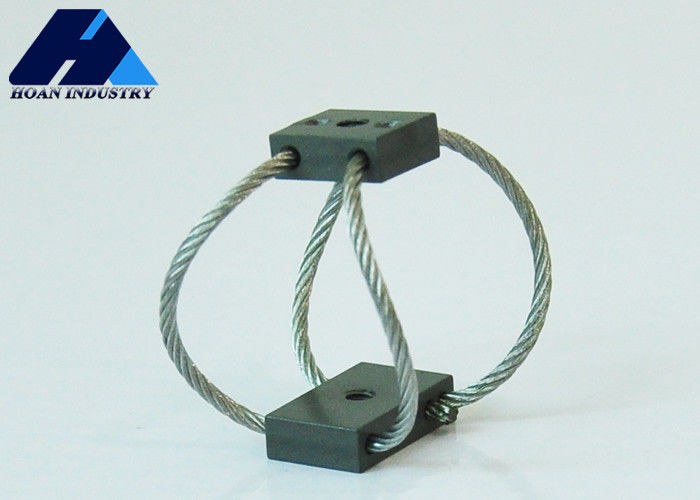

The GR3 butterfly-shaped steel wire rope vibration isolator from Xi'an Hoan Microwave Co., Ltd. demonstrates several breakthrough advantages compared with traditional vibration isolation components.
| No. | Model | Max Static Load (N) | Max Deflection (mm) | Kv(Vibration) (KN/m) | Ks(Shock) (KN/m) |
|---|---|---|---|---|---|
| 1 | GR3-30A-A | 30 | 7.1 | 24 | 12 |
| 2 | GR3-22A-A | 22 | 10.4 | 12 | 6.1 |
| 3 | GR3-18A-A | 18 | 14.2 | 8.4 | 3.5 |
| 4 | GR3-11A-A | 11 | 19.3 | 5.8 | 1.9 |
Material of the mounting splint: Stainless Steel or Aluminum can be selected
