مكان المنشأ:
الصين
اسم العلامة التجارية:
Hoan
رقم الموديل:
جي زي بي-6.0
| Pressure Range | High |
| Temperature Resistance | Can withstand extreme temperatures |
| Compression Ratio | Depends on size and type |
| Mounting Type | Threaded |
| Color | Black |
| Easy Installation | Simple and easy to install |
| Corrosion Resistance | Resistant to corrosion |
| Wire Diameter | 0.5mm |
| Installation Type | Horizontal/Vertical |
| After Warranty Service | Online Support |
| Quality | Industrial Grade |

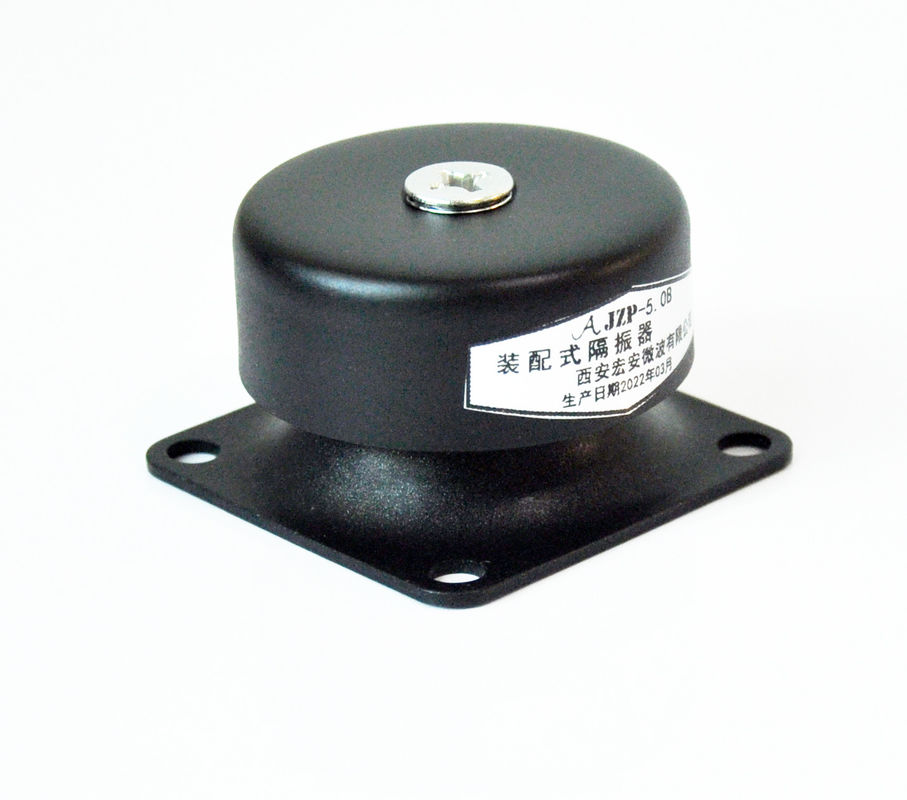

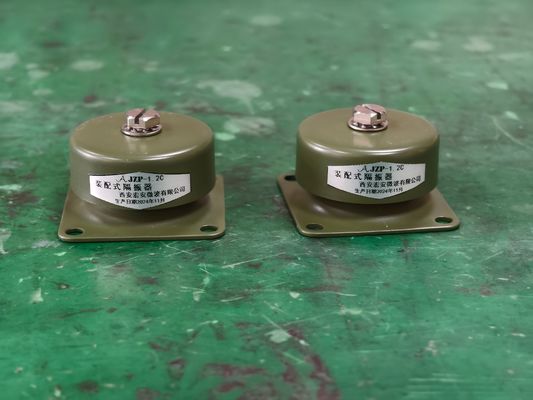

For precision equipment, even minor vibrations can affect performance. The JZP rubber damping isolator provides precise protection with extensive applications across multiple industries.
In computers and instruments, it effectively reduces external vibration interference on precision electronic components, ensuring measurement accuracy and operational stability. Its importance is particularly evident in missile and satellite transportation, navigation, and launch systems where strong vibrations and impacts occur. The JZP isolator provides reliable buffering and vibration isolation for internal precision instruments, ensuring system safety and mission success.
Across civil and military applications, the JZP rubber damping isolator has become a key component for protecting precision equipment, enhancing performance, and extending service life.
| Model | D | H | h | A | B | d1 | MG | R |
|---|---|---|---|---|---|---|---|---|
| JZP | 58 | 29 | 17 | 50 | 60 | ∅5.5 | M6 | 5 |
| Model | Pz Nominal Load (KG) | Deflection Displacement (mm) | Resonant Frequency (Hz) | Working Temperature (℃) | Shock (Ks) | Peak Response G |
|---|---|---|---|---|---|---|
| JZP-2.5 | 2.5 | ≤0.3 | 35±3 | -45～+65 | 100g/6ms | ≤3.6km/s² |
| JZP-3.2 | 3.2 | Same as above | ||||
| JZP-4.2 | 4.2 | Same as above | ||||
| JZP-5.2 | 5.2 | Same as above | ||||
| JZP-6.0 | 6.0 | Same as above | ||||
| JZP-7.0 | 7.0 | Same as above | ||||
| JZP-7.5 | 7.5 | Same as above | ||||
| JZP-8.5 | 8.5 | Same as above | ||||
| JZP-10.5 | 10.5 | Same as above | ||||
| JZP-13.5 | 13.5 | Same as above | ||||
| JZP-15 | 15 | Same as above | ||||
