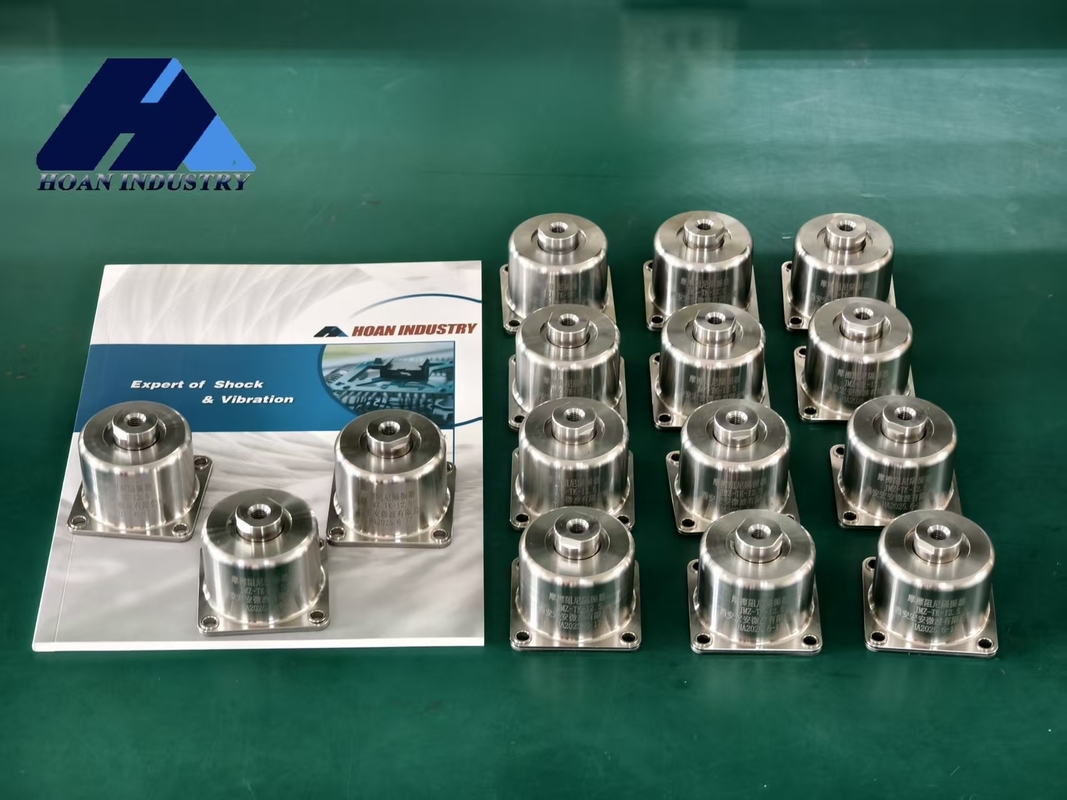

Name: JMZ-TK-7A Corrosion Resistant Friction Damping Isolator with Up to 95% Isolation Efficiency for Vibration Isolation in Energy & Mining
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: جي إم زي-TK-7A
Availability: InStock

المنزل > المنتجات > عازل الربيع >

JMZ-TK-7A Corrosion Resistant Friction Damping Isolator with Up to 95% Isolation Efficiency for Vibration Isolation in Energy & Mining

Corrosion Resistant Friction Damping Isolator,Up to 95% Isolation Efficiency Spring Isolator,Operating Temperature -40°F to 200°F Vibration Isolator

Up to 95% Isolation Efficiency Spring Isolator

Operating Temperature -40°F to 200°F Vibration Isolator

مكان المنشأ:

الصين

اسم العلامة التجارية:

Hoan

رقم الموديل:

جي إم زي-TK-7A

اتصل بنا

اطلب اقتباس

JMZ-TK-7A Corrosion Resistant Friction Damping Isolator with Up to 95% Isolation Efficiency for Vibration Isolation in Energy & Mining

تفاصيل المنتج

مقاومة التآكل:

نعم

نمط التصميم:

صناعي

طلب:

عزل الاهتزاز

الصناعات المعمول بها:

الطاقة والتعدين

الكلمات الرئيسية المنتج:

عازلات مكافحة الاحتكاك

ميناء:

xi'an أو المحدد

درجة حرارة التشغيل:

-40 درجة فهرنهايت إلى 200 درجة فهرنهايت

التخصيص:

متاح عند الطلب

امتصاص الصدمات:

عالي

كفاءة العزلة:

حتى 95٪

سعة تحميل المنتج:

قابل للتخصيص

بناء:

حبل الأسلاك المضفرة

بناء:

حلزوني

إبراز:

Corrosion Resistant Friction Damping Isolator,Up to 95% Isolation Efficiency Spring Isolator,Operating Temperature -40°F to 200°F Vibration Isolator

Up to 95% Isolation Efficiency Spring Isolator

Operating Temperature -40°F to 200°F Vibration Isolator

شروط الدفع والشحن

الحد الأدنى لكمية

شروط الدفع

L/C ، D/A ، D/P ، Western Union ، T/T ، Moneygram

منتجات ذات صلة

JMZ-TK1-50A Helical Structure Spring Steel Friction Damping Vibration Isolator with Vertical Mounting Orientation

احصل على أفضل سعر

JMZ-TK1-40A Customizable Cylindrical Friction Damping Vibration Isolator with Mounting Installation for Energy & Mining

احصل على أفضل سعر

JMZ-TK-8A Customized Solutions Stainless Steel Spring Isolator with Excellent Shock Absorption and Easy Installation

احصل على أفضل سعر

JMZ-TK-7A Corrosion Resistant Friction Damping Isolator with Up to 95% Isolation Efficiency for Vibration Isolation in Energy & Mining

احصل على أفضل سعر

اتصل بنا

86-29-88292913

اتصل بنا الآن

وصف المنتج

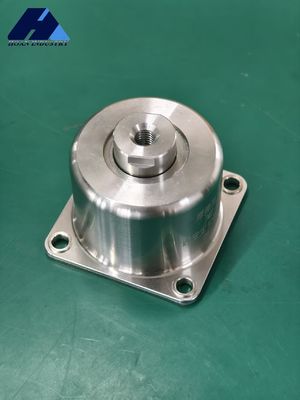

JMZ-TK-7A Friction Damping Isolators

Ensuring Material-Level Reliability in Real-World Conditions

JMZ-TK Vibration Isolators

The invisible contributor to enhancing industrial equipment precision and service life. In modern manufacturing, processing precision, production efficiency, and equipment service life are core indicators of competitiveness. The JMZ-TK series friction damping vibration isolators from Xi'an Hoan effectively address vibration-related challenges that impact equipment performance.

Core Benefits

Enhanced Processing and Measurement Precision: Quickly dampens internal vibrations from spindle rotation and feed system movement, as well as external vibrations transmitted through the foundation.
Extended Equipment Service Life: Reduces dynamic load on components by isolating and weakening vibration energy at the source, significantly extending precision retention period.

Applications

Ideal for high-precision CNC machine tools, coordinate measuring machines (CMMs), lithography machines, and other equipment requiring vibration isolation.

Installation

Simple installation between equipment and foundation with compact design that maintains original equipment layout.

Structural Dimension Diagram

Installation Dimensions (mm)

Model	B	M	d	A	C	∅1	∅2	H1	H2
JMZ-TK-2.5A～8A	46	6	4.1	58	20	55	22	36	3.6
JMZ-TK1-25A/40A/50A	63	12	8.2	78	20	70	22	56	6

Technical Parameters

Model	Nominal Load (N)	Load Range (N)	Natural Frequency fn≤(Hz)	Loading Working Height H0±1(mm)	Limit Displacement	Maximum Vibration Transmissibility ηv≤	Impact Resistance Test	Service Life (year)
JMZ-TK-2.5A	25	20～30	33	42	4	3	100g	10
JMZ-TK-4A	40	30～50	33	42	4	3	100g	10
JMZ-TK-5A	50	40～60

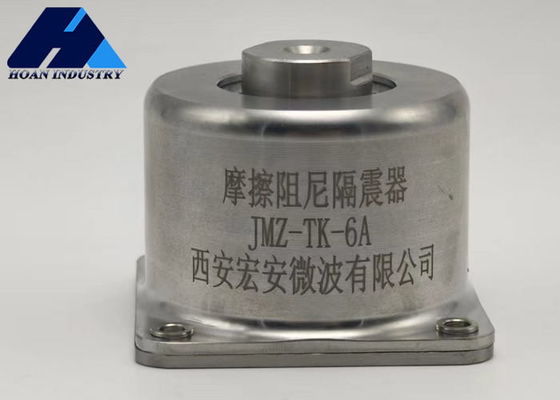

JMZ-TK-6A	60	50～70
JMZ-TK-7A	70	60～80

Investing in JMZ-TK vibration isolators yields significant long-term returns by improving product yield, reducing waste, lowering maintenance frequency, and extending equipment lifecycle.
