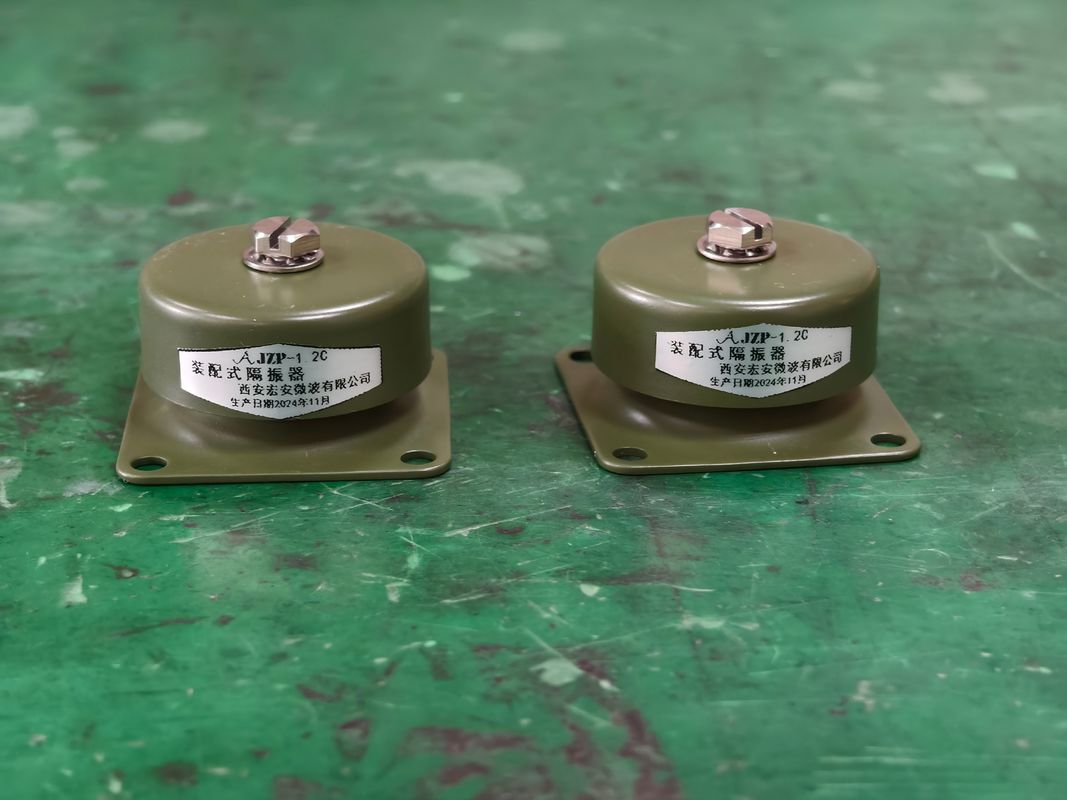

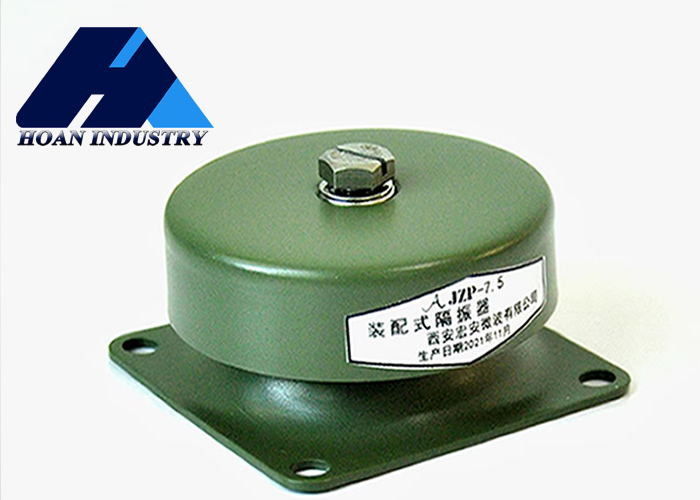

Name: JZP-6.0-SC-SC1 Series Rubber Shock Absorber with 5Hz Isolation Frequency 6kg Maximum Load Capacity and M5 Mounting Holes
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-6.0SC-SC1
Availability: InStock

المنزل > المنتجات > ممتص الصدمات المطاطي >

JZP-6.0-SC-SC1 Series Rubber Shock Absorber with 5Hz Isolation Frequency 6kg Maximum Load Capacity and M5 Mounting Holes

5Hz Isolation Frequency Rubber Shock Absorber,6kg Maximum Load Capacity Vibration Isolator,M5 Mounting Holes Friction Damping Vibration Isolator

6kg Maximum Load Capacity Vibration Isolator

M5 Mounting Holes Friction Damping Vibration Isolator

مكان المنشأ:

الصين

اسم العلامة التجارية:

Hoan

رقم الموديل:

JZP-6.0SC-SC1

اتصل بنا

اطلب اقتباس

JZP-6.0-SC-SC1 Series Rubber Shock Absorber with 5Hz Isolation Frequency 6kg Maximum Load Capacity and M5 Mounting Holes

تفاصيل المنتج

تردد العزلة:

5Hz

نموذج:

JZP

سعة الحمل القصوى:

6 كجم

مادة:

ممحاة

التخصيص:

السيارات والآلات والمحركات

تردد التشغيل:

يعتمد على الحجم والنوع

وظيفة:

تمتص الطاقة وتبددها على شكل حرارة

العرض العام:

50mm

طول العمر:

طويل الأمد

خاصية:

تردد عمل واسع وعمر طويل

معدل الربيع:

100-1000 رطل/بوصة

ثقوب التثبيت:

بناء:

صلب

إبراز:

5Hz Isolation Frequency Rubber Shock Absorber,6kg Maximum Load Capacity Vibration Isolator,M5 Mounting Holes Friction Damping Vibration Isolator

6kg Maximum Load Capacity Vibration Isolator

M5 Mounting Holes Friction Damping Vibration Isolator

شروط الدفع والشحن

الحد الأدنى لكمية

شروط الدفع

L/C ، D/A ، D/P ، T/T ، Western Union ، Moneygram

منتجات ذات صلة

JZP-13.5-SC-SC1 Rubber Shock Absorber with Damping Ratio 0.5 1 Year Warranty and 60mm Length for Sustainable Manufacturing

احصل على أفضل سعر

JZP-10.5-SC-SC1 Rubber Shock Absorber with 10Hz to 100Hz Frequency Range and -55 to +120 Working Temperature for Horizontal/Vertical Installation

احصل على أفضل سعر

JZP-9.0-SC-SC1 Rubber Shock Absorber with Temperature Resistance Up to 100 Degrees Celsius 50mm Width and 30 Hz Resonance Frequency for Industrial Machinery

احصل على أفضل سعر

JZP-7.5-SC-SC1 Friction Damping Vibration Isolator with Up to 90% Vibration Isolation M5 Mounting Thread Size and 50N/mm Axial Stiffness

احصل على أفضل سعر

اتصل بنا

86-29-88292913

اتصل بنا الآن

وصف المنتج

JZP-6.0-SC-SC1 Series - The Most Versatile Vibration Isolation Solution for Industrial Applications

Customized Vibration Isolation Solutions

Xi'an Hoan Microwave's JZP-SC-SC1 series friction damping vibration isolators are engineered for maximum application flexibility in diverse industrial scenarios. These solutions can be precisely tailored through selection, combination, and fine-tuning to meet specific vibration control requirements.

Key Features

Modular design accommodates loads from dozens of kilograms to several tons
Flexible configuration options for individual use or combined systems
Optimized for various applications from laboratory balances to CNC machining centers
Custom development available for specialized requirements
Special surface treatments (nickel plating, passivation) for cleanroom environments
Adjustable damping parameters for impact-resistant applications

Dimension Parameters

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	b (mm)
JZP-SC-SC1	60	36	24.5	50	60	M5	∅5.5	5	28

Technical Parameters

Model	Nominal Load (KG)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Limited Period
JMZ-3.2-SC-SC1	3.2	≤0.3	-45～+65	41.5±5	100g 12 times	8
JMZ-4.2-SC-SC1	4.2
JMZ-5.2-SC-SC1	5.2
JMZ-6.0-SC-SC1	6.0
JMZ-7.0-SC-SC1	7.0
JZP-7.5-SC-SC1	7.5
JZP-9.0-SC-SC1	9.0
JZP-10.5-SC-SC1	10.5
JZP-13.5-SC-SC1	13.5
JZP-15-SC-SC1	15

Customer Implementation

This engineering-focused approach ensures the JZP-SC-SC1 series provides optimal vibration isolation solutions tailored to each customer's specific equipment and operational requirements.

العلامات：

صدمة الاهتزاز الإلكتروني,عازلات معدنية مطاطية مركبة,مسدس الاحتكاك المعدني المطاطي

5Hz Isolation Frequency Rubber Shock Absorber,6kg Maximum Load Capacity Vibration Isolator,M5 Mounting Holes Friction Damping Vibration Isolator

Rubber Metal Friction Damper
