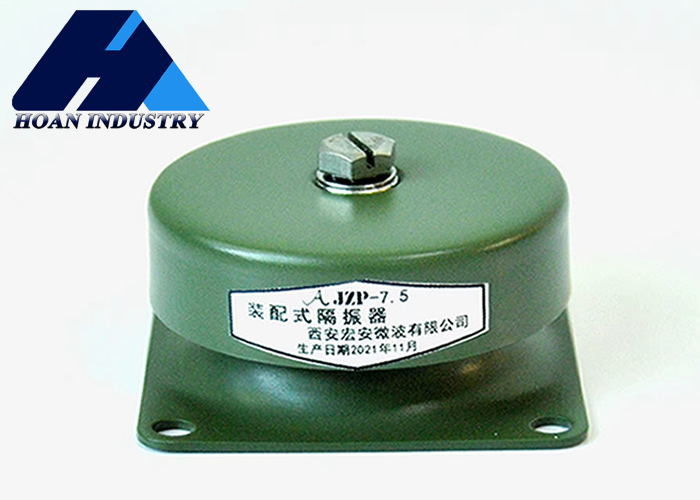

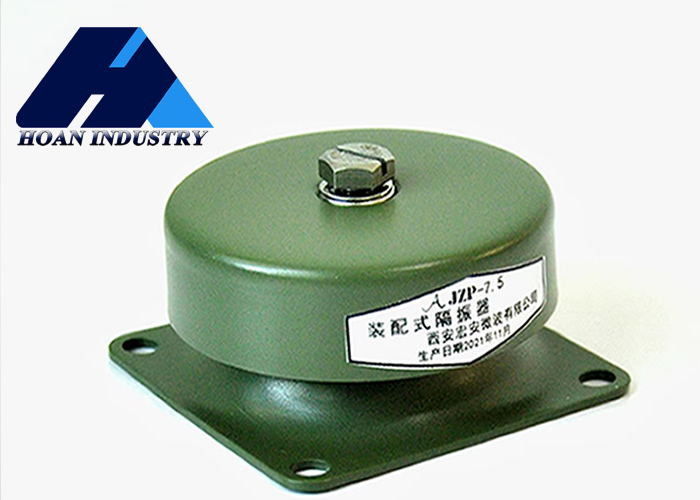

JZP-9.0-SC-SC1 Rubber Shock Absorber with Temperature Resistance Up to 100 Degrees Celsius 50mm Width and 30 Hz Resonance Frequency for Industrial Machinery

JZP-9.0-SC-SC1 Rubber Shock Absorber with Temperature Resistance Up to 100 Degrees Celsius 50mm Width and 30 Hz Resonance Frequency for Industrial Machinery

Temperature Resistance Rubber Shock Absorber,50mm Width Vibration Isolator,30 Hz Resonance Frequency Friction Damping Vibration Isolator

50mm Width Vibration Isolator

30 Hz Resonance Frequency Friction Damping Vibration Isolator

مكان المنشأ:

الصين

اسم العلامة التجارية:

Hoan

رقم الموديل:

JZP-9.0-SC-SC1

اتصل بنا
اطلب اقتباس
تفاصيل المنتج
مقاومة درجة الحرارة:
حتى 100 درجة مئوية
عرض:
50mm
مادة:
ممحاة
مقاومة الأشعة فوق البنفسجية:
قوي
تردد الرنين:
30 هرتز
سعة التحميل:
100-5000 رطل
التوجه التثبيت:
رَأسِيّ
التعبئة:
التعبئة القياسية
تصلب محوري:
50n/مم
تردد الاهتزاز:
5 هرتز إلى 100 هرتز
جودة:
الصف الصناعي
نوع التسويق:
المنتج الساخن 2024
الاستخدام:
الآلات الصناعية
إبراز:

Temperature Resistance Rubber Shock Absorber,50mm Width Vibration Isolator,30 Hz Resonance Frequency Friction Damping Vibration Isolator

,

50mm Width Vibration Isolator

,

30 Hz Resonance Frequency Friction Damping Vibration Isolator

شروط الدفع والشحن
الحد الأدنى لكمية
4
شروط الدفع
L/C ، D/A ، D/P ، T/T ، Western Union ، Moneygram
وصف المنتج
JZP-9.0-SC-SC1 Rubber Shock Absorber - Essential Component for Industry 4.0 Smart Production Lines
JZP-SC-SC1 Series: The Efficiency Multiplier for Smart Manufacturing
Under Industry 4.0 frameworks, production line intelligence and high throughput demand unprecedented equipment stability. The JZP-SC-SC1 series friction damping vibration isolators from Xi'an Hoan Microwave serve as critical "efficiency multipliers" for smart production lines.
Key Performance Advantages:
  • Effectively mitigates transient impacts and wide-frequency vibrations from industrial robots and AGV systems
  • Maintains positioning accuracy for precision assembly robots
  • Ensures clear imaging for visual inspection systems
  • Reduces quality issues like connector insertion failures
  • High damping characteristics enable rapid equipment stabilization between movements
  • Robust, maintenance-free design meets industrial reliability requirements
By implementing JZP-SC-SC1 isolators, manufacturers achieve not just vibration control but complete production process optimization - enabling truly efficient, high-reliability "dark factory" operations.
Dimension Specifications
JZP-9.0-SC-SC1 Rubber Shock Absorber with Temperature Resistance Up to 100 Degrees Celsius 50mm Width and 30 Hz Resonance Frequency for Industrial Machinery 0
Model D (mm) H±1 (mm) h (mm) A±0.2 (mm) B (mm) d d2 R b (mm)
JZP-SC-SC1 60 36 24.5 50 60 M5 ∅5.5 5 28
Technical Parameters
Model Nominal Load (KG) Static Displacement (mm) Working Temperature (℃) Resonance Frequency (Hz) Impact Test Limited Period
JMZ-3.2-SC-SC1 3.2 ≤0.3 -45~+65 41.5±5 100g 12 times 8
JMZ-4.2-SC-SC1 4.2 ≤0.3 -45~+65 41.5±5 100g 12 times 8
JMZ-5.2-SC-SC1 5.2 ≤0.3 -45~+65 41.5±5 100g 12 times 8
JMZ-6.0-SC-SC1 6.0 ≤0.3 -45~+65 41.5±5 100g 12 times 8
JMZ-7.0-SC-SC1 7.0 ≤0.3 -45~+65 41.5±5 100g 12 times 8
JZP-7.5-SC-SC1 7.5 ≤0.3 -45~+65 41.5±5 100g 12 times 8
JZP-9.0-SC-SC1 9.0 ≤0.3 -45~+65 41.5±5 100g 12 times 8
JZP-10.5-SC-SC1 10.5 ≤0.3 -45~+65 41.5±5 100g 12 times 8
JZP-13.5-SC-SC1 13.5 ≤0.3 -45~+65 41.5±5 100g 12 times 8
JZP-15-SC-SC1 15 ≤0.3 -45~+65 41.5±5 100g 12 times 8

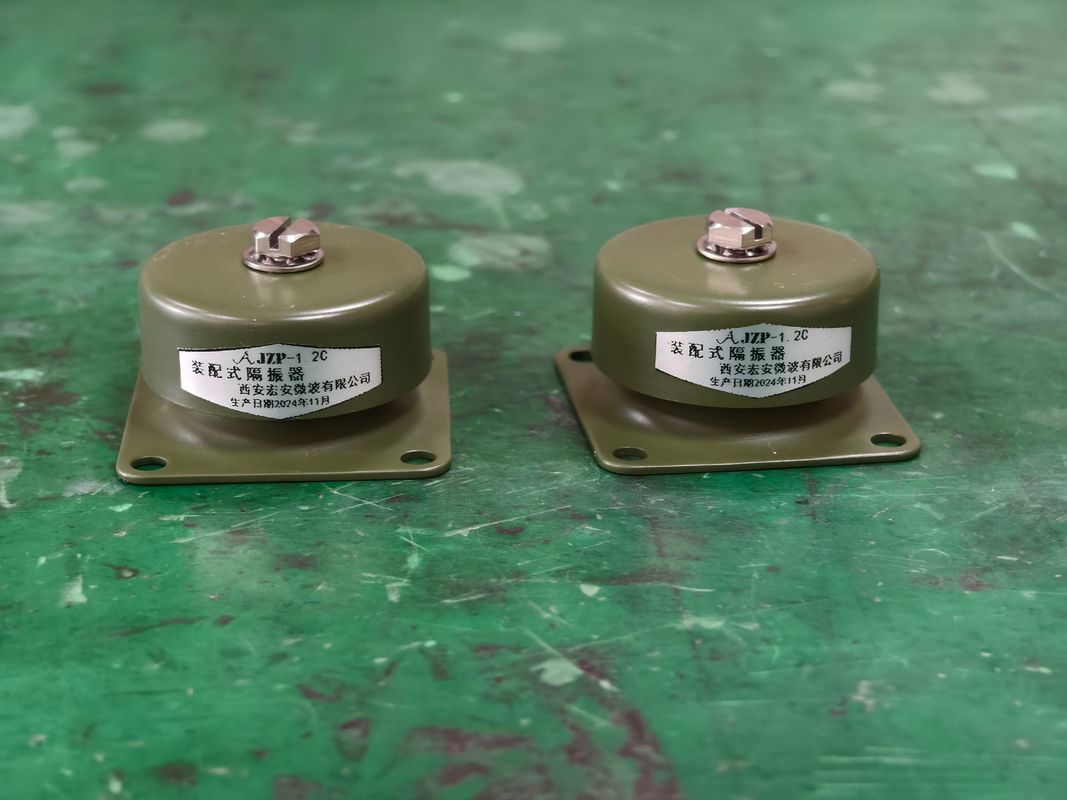

Customer Implementation
JZP-9.0-SC-SC1 Rubber Shock Absorber with Temperature Resistance Up to 100 Degrees Celsius 50mm Width and 30 Hz Resonance Frequency for Industrial Machinery 1
