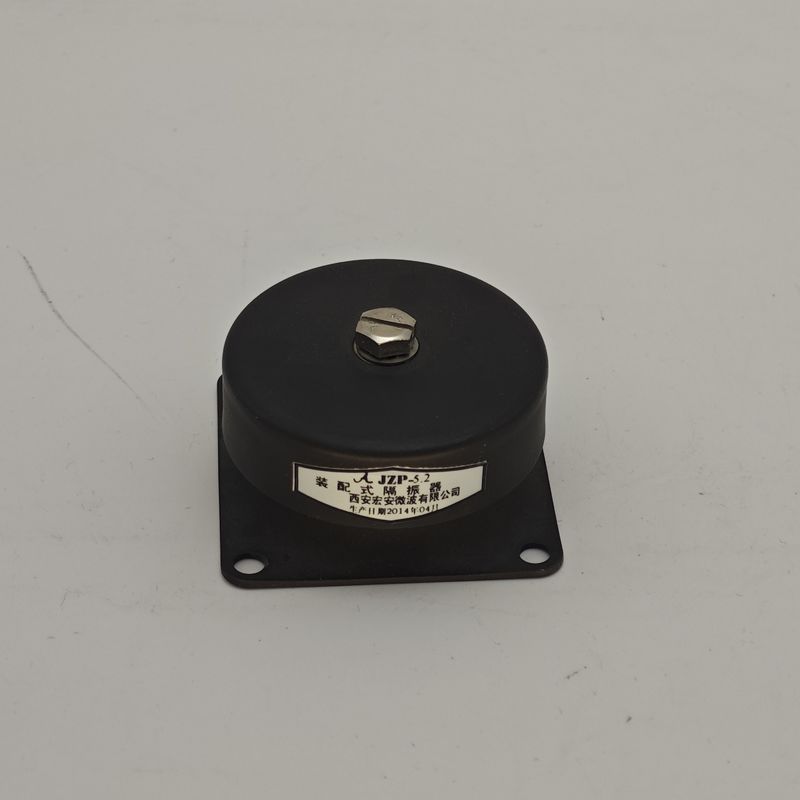

Name: JZP-2.0B-SC Rubber Shock Absorber with Anchoring Holes and 30mm Height for Effective Energy Absorption
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-2.0B-SC
Availability: InStock

المنزل > المنتجات > ممتص الصدمات المطاطي >

JZP-2.0B-SC Rubber Shock Absorber with Anchoring Holes and 30mm Height for Effective Energy Absorption

30mm Rubber Shock Absorber,Anchoring Holes Vibration Isolator,Energy Absorption JZP Series

Anchoring Holes Vibration Isolator

Energy Absorption JZP Series

مكان المنشأ:

الصين

اسم العلامة التجارية:

Hoan

رقم الموديل:

JZP-2.0B-SC

اتصل بنا

اطلب اقتباس

JZP-2.0B-SC Rubber Shock Absorber with Anchoring Holes and 30mm Height for Effective Energy Absorption

تفاصيل المنتج

خاصية:

تردد عمل واسع وعمر طويل

درجة حرارة العمل:

-55 ~ +120

ارتفاع:

30mm

شهادة المنتج:

ISO 9001

القطر:

0.25-2 بوصة

ميناء:

xi'an أو المحدد

سمات:

تثبيت الثقوب مقاومة للزيت

التعبئة:

التعبئة القياسية

عمل درجات حرارة:

: -55 ~ +120

لون:

أسود

مُكَمِّلات:

شبكة

وظيفة:

تمتص الطاقة وتبددها على شكل حرارة

إبراز:

30mm Rubber Shock Absorber,Anchoring Holes Vibration Isolator,Energy Absorption JZP Series

Anchoring Holes Vibration Isolator

Energy Absorption JZP Series

شروط الدفع والشحن

الحد الأدنى لكمية

شروط الدفع

خطاب الاعتماد، D/A، D/P، T/T، ويسترن يونيون، موني جرام

منتجات ذات صلة

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

احصل على أفضل سعر

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

احصل على أفضل سعر

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

احصل على أفضل سعر

JZP-3.5B-SC Modular Rubber Shock Absorber with 5-6KG Load Range 1:2 Compression Ratio and 40g/11ms Shock Resistance

احصل على أفضل سعر

اتصل بنا

86-29-88292913

اتصل بنا الآن

وصف المنتج

Rubber Shock Absorber for On-Vehicle Equipment JZP-2.0B-SC for Long-Term Cost Reduction Efficiency Enhancement

JZP-B-SC Series

Engineering Wisdom for Cost Reduction & Efficiency Enhancement: The Whole-Life-Cycle Value of Xi'an Hoan's JZP Series Vibration Isolators

When procuring on-vehicle equipment components, the initial cost is just the beginning. The JZP Series On-Vehicle Modular Vibration Isolators from Xi'an Hoan Microwave Co., Ltd. offer exceptional engineering design and long-lasting reliability, delivering outstanding whole-life-cycle value for users seeking long-term cost reduction and efficiency enhancement.

Reducing Maintenance Costs: Equipment without proper vibration isolation experiences exponentially higher failure rates. The JZP Series minimizes equipment failures through source protection, significantly reducing repair costs and downtime.
Extending Equipment Service Life: Vibration and impact are primary causes of electronic equipment failure. JZP vibration isolators provide life-extension protection for precision devices, delaying expensive replacement cycles and improving ROI.
Enhancing System Availability: For critical applications like emergency communications and military operations, the JZP Series ensures continuous equipment operation during movement, where its value far exceeds its purchase price.

Choosing Xi'an Hoan's JZP Series represents a forward-looking, highly cost-effective strategic investment rather than a simple procurement decision.

Dimension Parameter Table

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	B (mm)
JZP-B-SC	46	30	21	40	50	M4	∅5.5	5	22

Technical Parameter Table

Model	Nominal Load (kg)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Valid Period (year)
JZP-1.0B-SC	1.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-1.5B-SC	1.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-2.0B-SC	2.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-2.5B-SC	2.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-3.0B-SC	3.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-3.5B-SC	3.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-4.0B-SC	4.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-5.0B-SC	5.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-5.5B-SC	5.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-6.0B-SC	6.0	≤0.3	-45～+65	41.5±5	100G12times	8

Vibration and Impact Performance Curves

Vibration Performance

Impact Performance
