Hoan
JGX-0958 Series

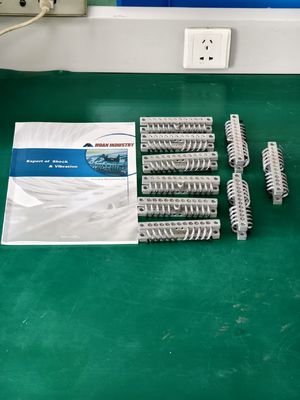

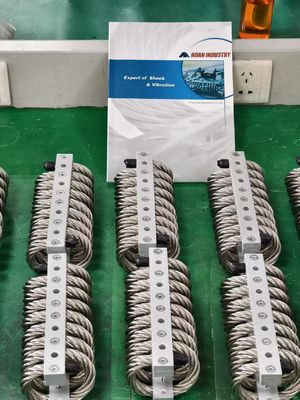

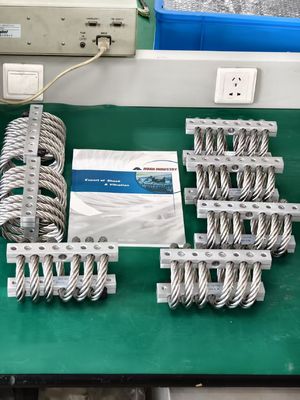

Steel Wire Rope Vibration Isolator JGX-0958 redefines industrial vibration isolation with excellent performance and affordable pricing! Made of high-strength galvanized steel wire rope, its three-dimensional nonlinear damping structure efficiently absorbs mechanical vibration, impact, and noise, suitable for vibration isolation of fans, pumps, compressors, and other equipment. With resistance to high and low temperatures (-40℃~110℃), corrosion, and aging, it ensures long-term stable operation in harsh conditions, reducing maintenance costs by eliminating frequent replacements.
Price Advantage at Its Core: Compared with similar imported products, JGX-0958 achieves the same vibration isolation efficiency at less than half the price. Certified by ISO 9001 quality system, its performance parameters meet international standards. Volume purchases enjoy tiered discounts—orders over 100 pieces get a 15% price cut—paired with free installation guidance and a 1-year warranty, delivering cost-effectiveness from procurement to use. Whether for industrial equipment matching or old system renovation, JGX-0958 is a wise choice balancing performance and budget.
Static-Load Curve
| No | Model |
Max Static Load (kg) |
Max Defelection (mm) |
Kv(Vibration) (KN/m) |
Ks(Shock) (KN/M) |
| 1 | JGX-0958A-149A | 149 | 34.0 | 366 | 179 |
| 2 | JGX-0958A-138A | 138 | 37.1 | 320 | 152 |
| 3 | JGX-0958A-108A | 108 | 40.1 | 242 | 110 |
| 4 | JGX-0958A-99A | 99 | 44.7 | 205 | 91 |
| 5 | JGX-0958A-95A | 95 | 49.8 | 182 | 79 |
| 6 | JGX-0958A-54A | 54 | 66.0 | 86 | 33 |
| 7 | JGX-0958A-43A | 43 | 68.1 | 67 | 26 |
| No | Model |
Max Static Load (kg) |
Max Defelection (mm) |
Kv(Vibration) (KN/m) |
Ks(Shock) (KN/M) |
| 1 | JGX-0958A-149A | 120.3 | 47.8 | 236 | 103 |
| 2 | JGX-0958A-138A | 111.2 | 51.8 | 208 | 88 |
| 3 | JGX-0958A-108A | 90.8 | 55.9 | 159 | 65 |
| 4 | JGX-0958A-99A | 84.0 | 63.0 | 137 | 54 |
| 5 | JGX-0958A-95A | 79.4 | 71.1 | 123 | 47 |
| 6 | JGX-0958A-54A | 47.7 | 91.9 | 60 | 21 |
| 7 | JGX-0958A-43A | 38 | 95 | 47 | 16 |
| No | Model |
Max Static Load (kg) |
Max Defelection (mm) |
Kv(Vibration) (KN/m) |
Ks(Shock) (KN/M) |
| 1 | JGX-0958A-149A | 93.1 | 36.1 | 130 | 130 |
| 2 | JGX-0958A-138A | 88.5 | 39.1 | 112 | 112 |
| 3 | JGX-0958A-108A | 68.1 | 42.2 | 77 | 77 |
| 4 | JGX-0958A-99A | 63.6 | 47.2 | 65 | 65 |
| 5 | JGX-0958A-95A | 61.3 | 52.8 | 60 | 60 |
| 6 | JGX-0958A-54A | 27.2 | 68.1 | 27 | 27 |
| 7 | JGX-0958A-43A | 20.4 | 71.7 | 19 | 19 |
* The material of the wire rope splint *
