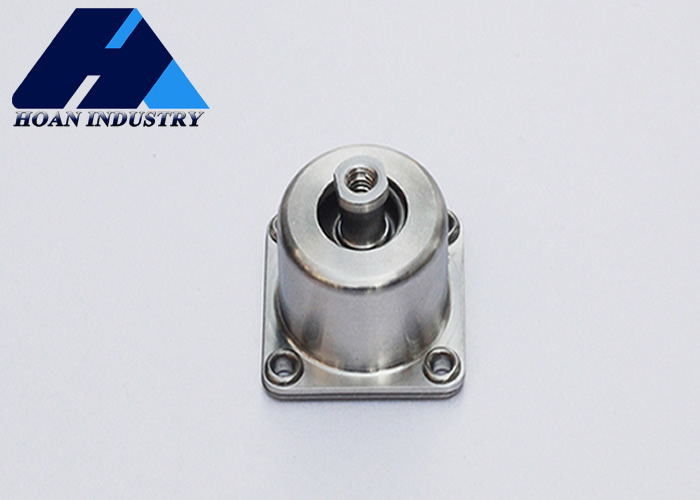

JMZ-T-1.4 Friction Damping Spring Isolator with 95% Isolation Efficiency for Precision Manufacturing in -40°F to 180°F

JMZ-T-1.4 Friction Damping Spring Isolator with 95% Isolation Efficiency for Precision Manufacturing in -40°F to 180°F

اسم العلامة التجارية: Hoan
Model Number: جمز-T-1.4
موك: 4
شروط الدفع: L/C ، D/A ، D/P ، T/T ، Western Union ، Moneygram
معلومات مفصلة
مكان المنشأ:
الصين
امتصاص الصدمات:
ممتاز
التطبيقات:
يتصاعد المحرك الصناعي
الشهادات:
مدرج في قائمة UL، ومتوافق مع RoHS
نطاق درجة الحرارة:
-40 درجة فهرنهايت إلى 180 درجة فهرنهايت
نوع التثبيت:
أفقي/عمودي
الحد من الضوضاء:
فعال
توافر:
متوفر على نطاق واسع
صمود:
عالي
حالة:
جديد
التخصيص:
متاح عند الطلب
طريقة التثبيت:
انسحب
نمط التصميم:
صناعي
كفاءة العزلة:
حتى 95٪
الكلمات الرئيسية المنتج:
عازلات مكافحة الاحتكاك
إبراز:

Temperature Range Spring Isolator

,

95% Isolation Efficiency Vibration Isolator

,

Precision Manufacturing Friction Damping Isolator

وصف المنتج
JMZ-T-1.4 Friction Damping Vibration Isolators for Precision Manufacturing
JMZ-T Series Overview
Master Vibration, Reshape the Stability of Precision Equipment - The Hoan Microwave JMZ-T Series Vibration Isolators provide groundbreaking solutions for precision manufacturing, aerospace, and high-end laboratory applications where even minor vibrations can compromise performance and accuracy.
Advanced Vibration Isolation Technology
The JMZ-T Series utilizes innovative friction damping technology with a non-viscous damping mechanism to efficiently dissipate vibration energy from both external environments and internal equipment operation. This solution effectively absorbs low-frequency ground vibrations and mid-to-high frequency operational vibrations, converting them into heat energy for dissipation.
Key Benefits
  • Provides stable working platform for precision equipment
  • Significantly improves processing quality and measurement accuracy
  • Extends equipment service life and reduces maintenance costs
  • Ideal for lithography machines, electron microscopes, CMMs, and precision machining centers
Technical Specifications
JMZ-T Series technical specifications diagram
Model Pz-Direction Load (kg) Displacement Under Maximum Load (mm) d Weight (g) Vibration test Shock test Resonance frequency (Hz) Operating temperature range (℃)
JMZ-T-1.4 1.4 ≤0.6 ST4*0.7/ M7-7H ≤58 <4 30g,11ms <30 -65~+120
JMZ-T-2.6 2.6 See JMZ-T-1.4 for other specifications
JMZ-T-2.8 2.8 See JMZ-T-1.4 for other specifications
Performance Curves
Vibration and impact performance characteristics of the JMZ-T Series:
JMZ-T Series vibration performance curve
Vibration Performance Curve
JMZ-T Series impact performance curve
Impact Performance Curve
Customer Application
JMZ-T Series vibration isolator in customer application
