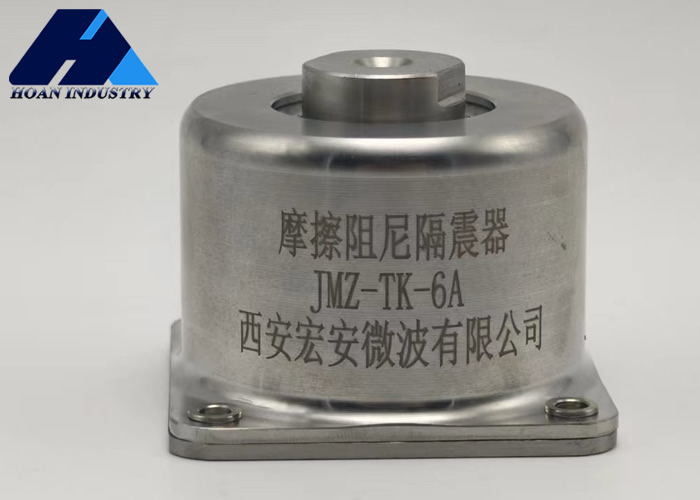

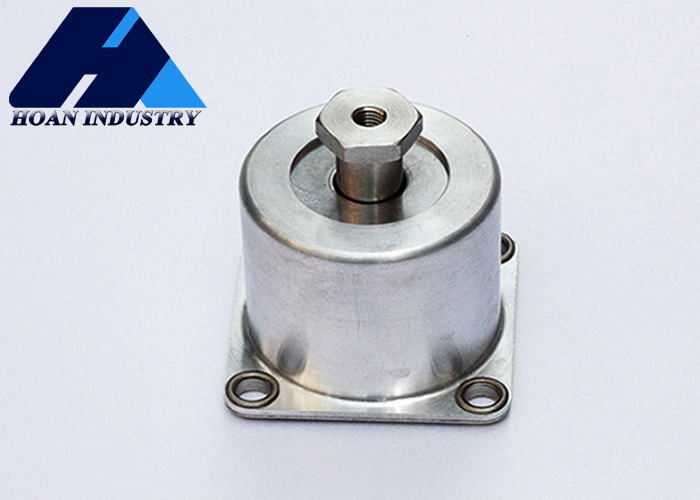

Name: JMZ-T1-0.45 Friction Damping Vibration Isolator with Up to 95% Isolation Efficiency for 0-150°F Operating Temperature and 1 Year Warranty
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JMZ-T1-0.45
Availability: InStock

المنزل > المنتجات > عازل الربيع >

JMZ-T1-0.45 Friction Damping Vibration Isolator with Up to 95% Isolation Efficiency for 0-150°F Operating Temperature and 1 Year Warranty

Up to 95% Isolation Efficiency Friction Damping Vibration Isolator,0-150°F Operating Temperature Spring Isolator,1 Year Warranty Vibration Isolator

0-150°F Operating Temperature Spring Isolator

1 Year Warranty Vibration Isolator

مكان المنشأ:

الصين

اسم العلامة التجارية:

Hoan

رقم الموديل:

JMZ-T1-0.45

اتصل بنا

اطلب اقتباس

JMZ-T1-0.45 Friction Damping Vibration Isolator with Up to 95% Isolation Efficiency for 0-150°F Operating Temperature and 1 Year Warranty

تفاصيل المنتج

لون:

فضي

بعد خدمة الضمان:

الدعم عبر الإنترنت

التوجه التثبيت:

رَأسِيّ

شكل:

أسطواني

صمود:

عالي

درجة حرارة التشغيل:

0-150 درجة فهرنهايت

حالة:

جديد

الحد من الضوضاء:

فعال

مادة:

الصلب المجلفن

ضمان:

1 سنة

كفاءة العزلة:

حتى 95٪

متانة:

طويل الأمد

طريقة التثبيت:

مثبت أو مضمن

العرض العام:

32mm

التخصيص:

متاح عند الطلب

إبراز:

Up to 95% Isolation Efficiency Friction Damping Vibration Isolator,0-150°F Operating Temperature Spring Isolator,1 Year Warranty Vibration Isolator

0-150°F Operating Temperature Spring Isolator

1 Year Warranty Vibration Isolator

شروط الدفع والشحن

الحد الأدنى لكمية

شروط الدفع

Moneygram ، Western Union ، T/T ، D/P ، D/A ، L/C.

منتجات ذات صلة

JMZ-T1-1.4 32mm Overall Width Spring Isolator with 1 Year Warranty and High Resilience for Industrial Vibration Isolation

احصل على أفضل سعر

JMZ-T1-1.2 Spring Isolator with 95% Isolation Efficiency 32mm Overall Width and UL Listed for Vibration Isolation

احصل على أفضل سعر

JMZ-T1-0.6 Spring Isolator with High Resilience and Strong Shock Resistance for Durable Vibration Control

احصل على أفضل سعر

JMZ-T1-0.45 Friction Damping Vibration Isolator with Up to 95% Isolation Efficiency for 0-150°F Operating Temperature and 1 Year Warranty

احصل على أفضل سعر

اتصل بنا

86-29-88292913

اتصل بنا الآن

وصف المنتج

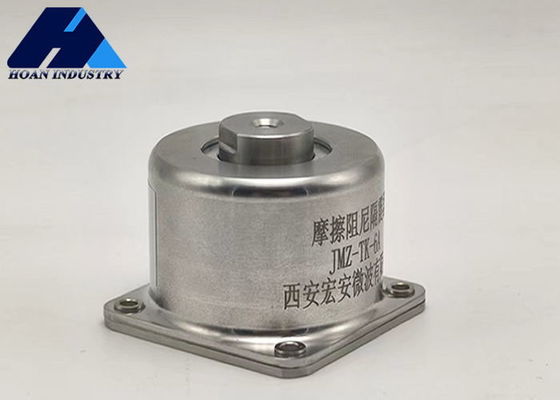

JMZ-T1-0.45 Friction Damping Vibration Isolators

Performance Multiplier for Precision Equipment

The JMZ-T1 Series friction damping vibration isolators from Xi'an Hoan Microwave go beyond basic vibration isolation to become true performance enhancers for your equipment. These isolators provide the environmental stability required for ultra-high-precision applications.

Key Benefits

Extremely low natural frequency for superior vibration isolation
High-efficiency damping reduces vibration interference below theoretical limits
Effectively suppresses self-generated vibrations from internal moving components
Enhances measurement accuracy by an order of magnitude
Improves product yield and shortens R&D cycles

Ideal Applications

Scanning Electron Microscopes (SEMs), Lithography Machines, Atomic Force Microscopes (AFMs), and other precision equipment requiring ultimate stability.

Structural Dimension Diagram

Technical Parameters

Model	Max PZ-Direction Load (kg)	PZ Displacement Under Max Load (mm)	H (mm)	h (mm)	d (mm)	Weight (g)	Shock Test	Resonance Frequency (Hz)	Operating Temperature Range (°C)
JMZ-T1-0.3	0.3	≤0.6	19.5±0.5	16	M4-7H/ M3-7H	≤58	30g,11ms	＜30	-65～+120
JMZ-T1-0.45	0.45
JMZ-T1-0.6	0.6
JMZ-T1-1.2	1.2		22±0.5	17.5
JMZ-T1-1.4	1.4
JMZ-T1-2.0	2.0

Vibration Performance

Impact Performance
