مكان المنشأ:
الصين
اسم العلامة التجارية:
Hoan
رقم الموديل:
جي إم زي-TK-4A

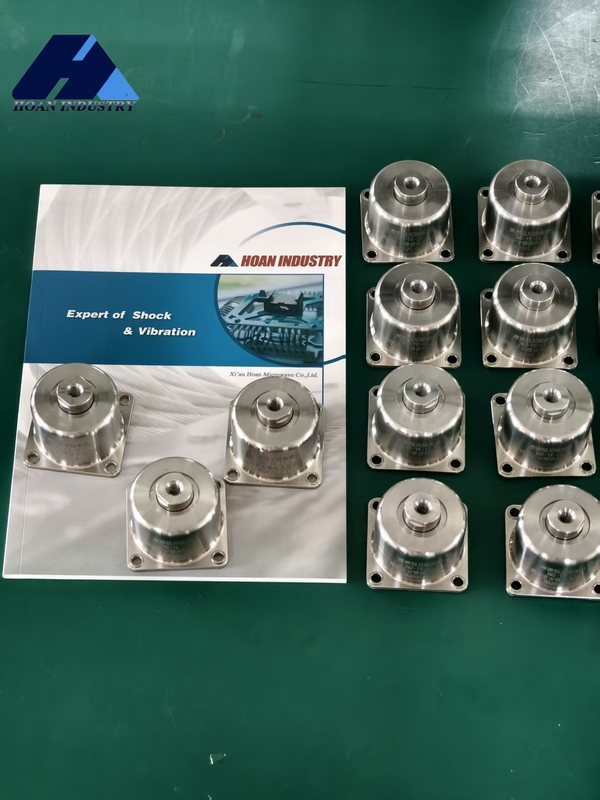

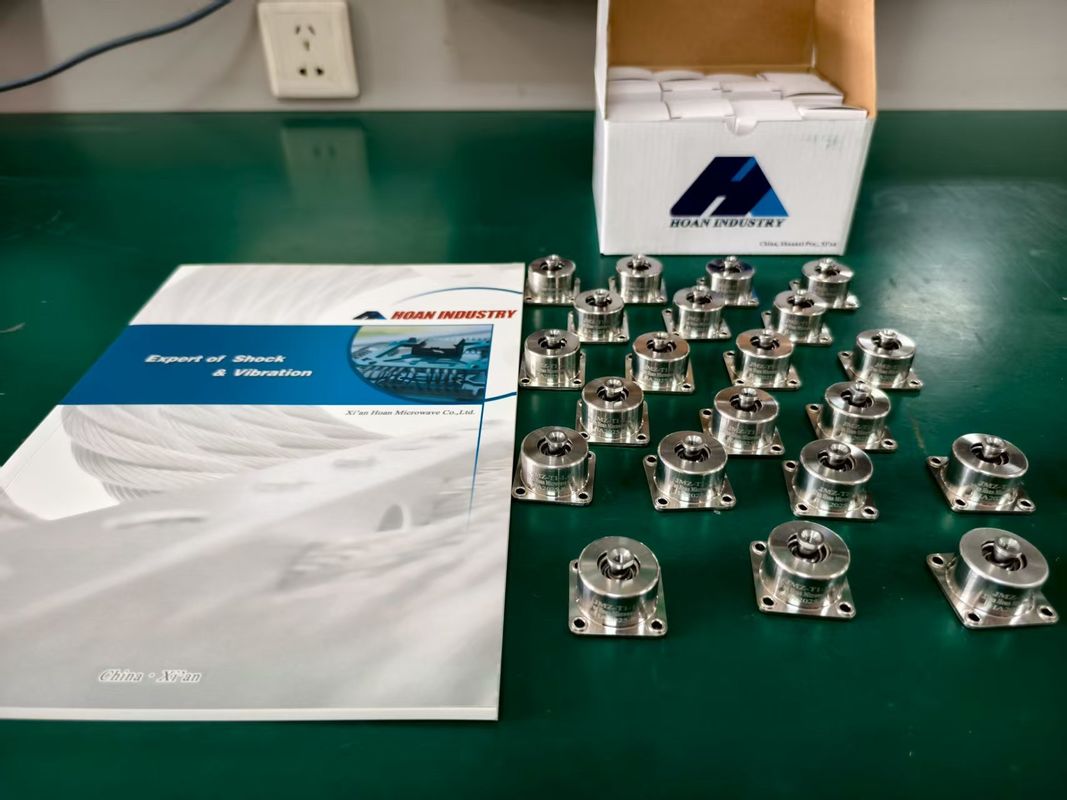

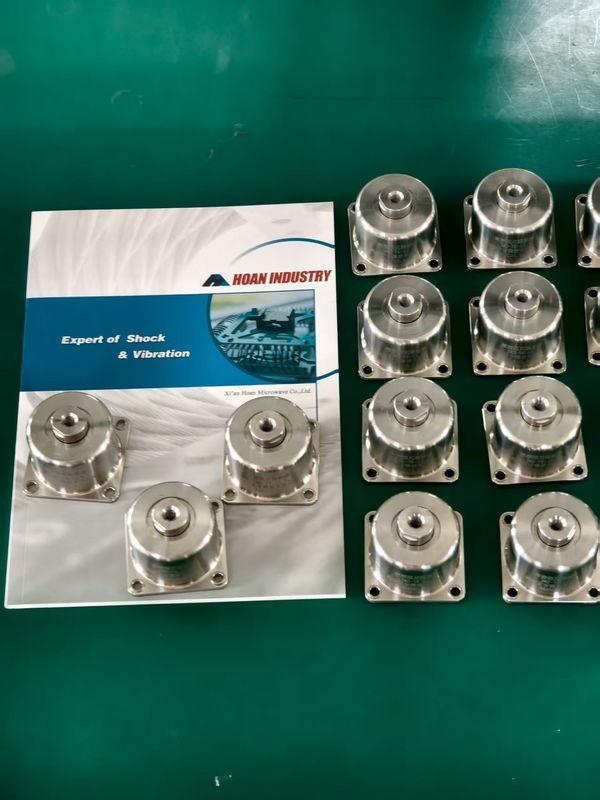

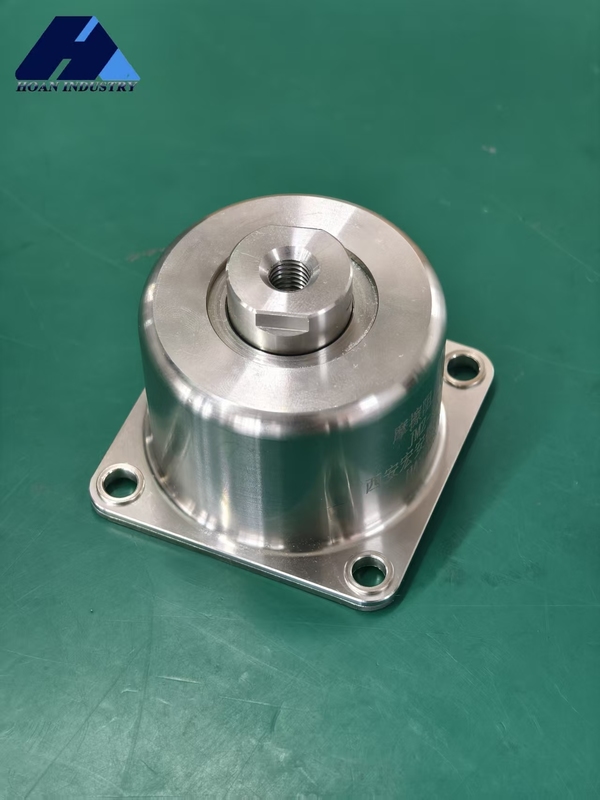

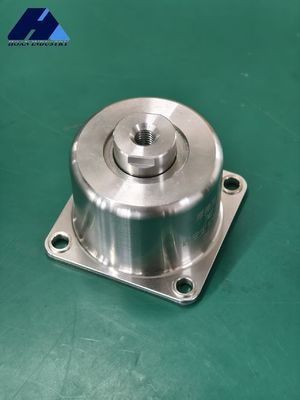

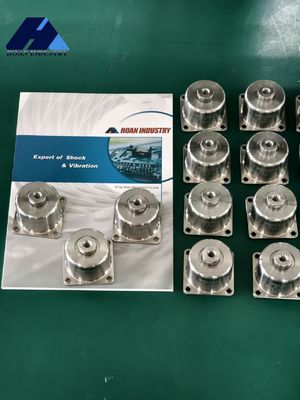

JMZ-TK Vibration Isolator: Press the "Silence Button" for Your Precision Equipment
Vibration and impact are invisible threats to precision equipment. The JMZ-TK series friction damping vibration isolators from Xi'an Hoan Microwave Co., Ltd. effectively filter out harmful disturbances from ground micro-vibrations, equipment operation, and environmental factors.
The JMZ-TK isolator utilizes direct friction damping technology, converting mechanical energy into thermal energy through precisely engineered friction pairs. This provides instant response to vibrations with no delay, effectively suppressing disturbances at their source.
The isolator excels in low-frequency vibration control (5Hz to 100Hz), crucial for precision measurement and processing applications. By increasing the system's equivalent damping ratio, it significantly reduces resonance peaks and quickly attenuates low-frequency vibrations, creating a near-stationary reference plane for sensitive equipment.
Ideal for laboratories, metrology centers, astronomical observatories, and high-end manufacturing, the JMZ-TK series provides a fundamental solution for improving data accuracy and process precision in vibration-sensitive environments.
| Model | B | M | d | A | C | ∅1 | ∅2 | H1 | H2 |
|---|---|---|---|---|---|---|---|---|---|
| JMZ-TK-2.5A～8A | 46 | 6 | 4.1 | 58 | 20 | 55 | 22 | 36 | 3.6 |
| JMZ-TK1-25A/40A/50A | 63 | 12 | 8.2 | 78 | 20 | 70 | 22 | 56 | 6 |
| Model | Nominal Load (N) | Load Range (N) | Natural Frequency fn≤(Hz) | Loading Working Height H0±1(mm) | Limit Displacement | Maximum Vibration Transmissibility ηv≤ | Impact Resistance Test |
Service Life (year) |
|---|---|---|---|---|---|---|---|---|
| JMZ-TK-2.5A | 25 | 20～30 | 33 |
42 |
4 |
3 | 100G | 10 |
| JMZ-TK-4A | 40 | 30～50 | ||||||
| JMZ-TK-5A | 50 | 40～60 | ||||||
| JMZ-TK-6A | 60 | 50～70 | ||||||
| JMZ-TK-8A | 80 | 70～90 | ||||||
| JMZ-TK1-25A | 250 | 200～300 | 20 |
70 |
7 |
3 | 60G | |
| JMZ-TK1-40A | 400 | 300～480 | ||||||
| JMZ-TK1-50A | 500 | 400～600 |
