| اسم العلامة التجارية: | JGX |
| Model Number: | جكس-0958د-149أ |
| موك: | 10 قطع |
| شروط الدفع: | T / T ، L / C ، باي بال ، ويسترن يونيون |
| Supply Ability: | 200 قطعة في الشهر |

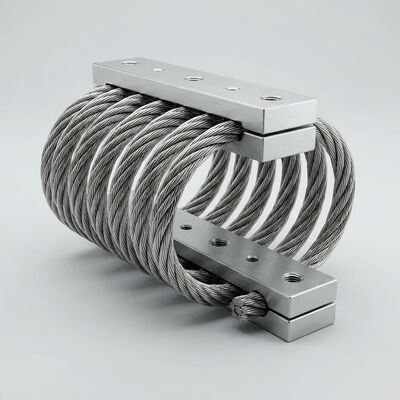

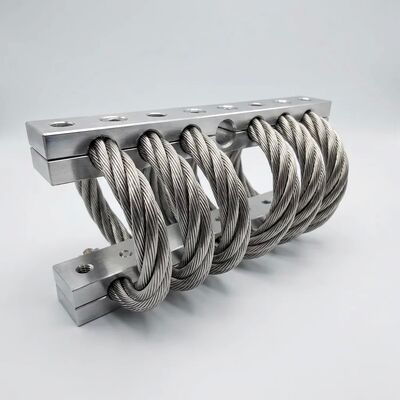

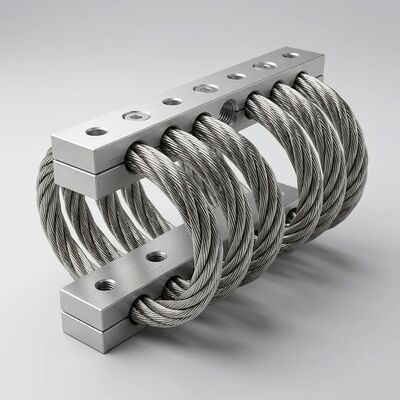

The JGX-0958D-149A represents a precision-engineered approach to industrial vibration control. At its core, a multi-helical stainless steel wire rope element converts kinetic energy into thermal energy through inter-strand friction—a mechanism known as Coulomb damping. Unlike viscoelastic alternatives that degrade predictably, the wire rope hysteresis loop remains stable across the isolator’s entire service life, delivering consistent attenuation from 10 Hz through 2000 Hz across all three orthogonal axes.
The wire rope core is cold-drawn AISI 316L with a tensile strength exceeding 1770 MPa. Each strand undergoes a proprietary pre-stressing process that stabilizes the hysteresis loop before the isolator leaves the factory—meaning no break-in period is required at installation. The aluminum alloy clamping bars are hard-anodized to MIL-A-8625 Type III specifications (commercial equivalent), providing galvanic compatibility and a durable mounting surface rated for >5000 installation cycles.
| Model | JGX-0958D-149A |
| Wire Rope Material | AISI 316L Stainless Steel, Cold-Drawn |
| Wire Rope Diameter | 9.5 mm |
| Coil Configuration | 8-Coil Multi-Helical |
| Clamping Bar Material | 6061-T6 Aluminum Alloy, Hard Anodized |
| Damping Mechanism | Coulomb Friction + Elastic Hysteresis |
| Damping Ratio | 0.15–0.25 (Frequency-Dependent) |
| Natural Frequency | 8–15 Hz (Load-Dependent) |
| Vibration Attenuation | Up to 90% (10–2000 Hz, 3-Axis) |
| Operating Temperature | -70°C to +300°C |
| Corrosion Resistance | >1000 Hours Salt Spray (ASTM B117) |
| Shock Input Survival | 50 g (11 ms, Half-Sine Pulse) |
| Static Load Capacity | 5–150 kg per Mount (Orientation-Dependent) |
| Surface Finish | Electropolished (Wire Rope) + Hard Anodized (Bars) |
| Certification | ISO 9001:2015, ISO 10846 |
Rubber mounts typically degrade above 80°C due to polymer chain scission, losing damping properties rapidly. The all-metal JGX-0958D-149A maintains consistent performance to 300°C, making it the reliable choice for engine compartments, furnace areas, and desert installations.
None. The Coulomb friction damping mechanism is inherently self-contained—no fluids to check, no seals to replace, no lubrication schedule. Visual inspection for mechanical damage during routine equipment checks is the only recommended procedure.
Yes. AISI 316L stainless steel construction with electropolished finish provides excellent resistance to rain, salt spray, UV exposure, and industrial pollutants. The design has been validated in coastal and offshore installations with no supplemental coating required.
Every JGX-0958D-149A ships with a factory test certificate documenting individual damping performance curves. ISO 9001:2015 and ISO 10846 accredited manufacturing ensures batch-to-batch consistency. Contact our engineering team today for load-deflection charts, 3D CAD models, and application-specific damping calculations tailored to your equipment profile.
