JGX-0958D-138A All-Metal Wire Rope Vibration Isolator High Static Load Compact Design Extreme Environment

JGX-0958D-138A All-Metal Wire Rope Vibration Isolator

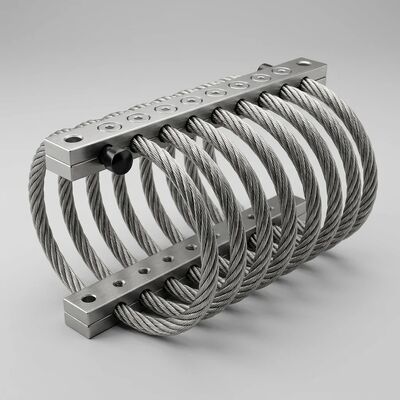

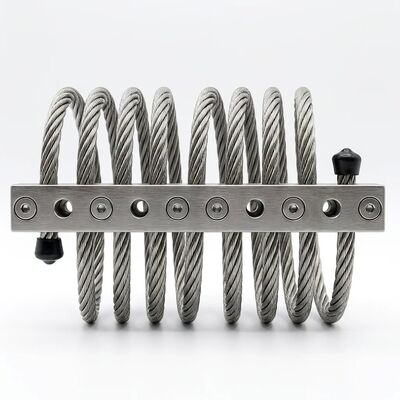

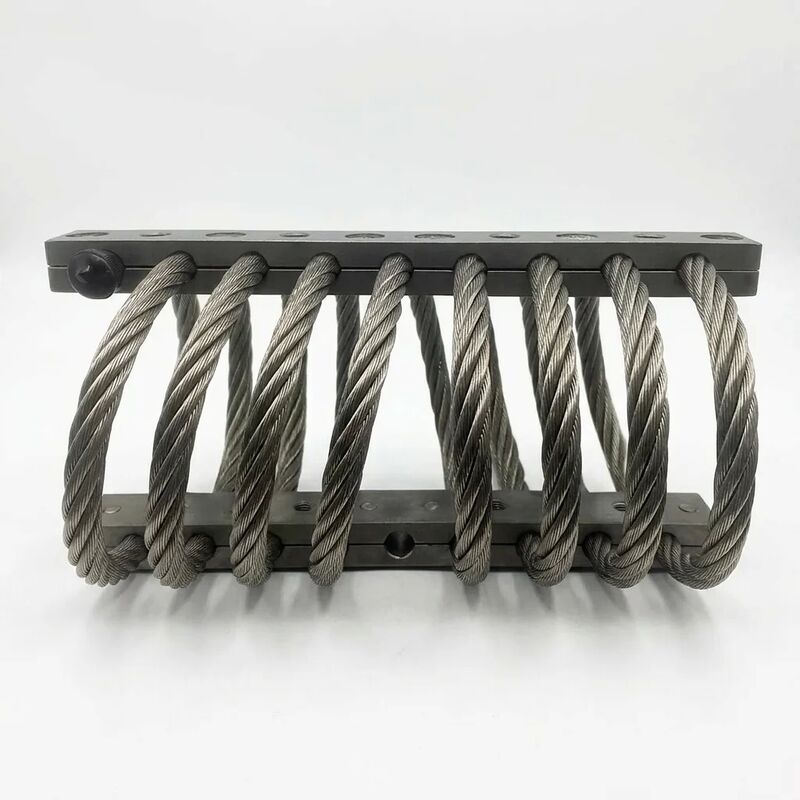

The JGX-0958D-138A is a heavy-duty all-metal wire rope vibration isolator engineered to deliver reliable shock and vibration protection in the world's most demanding industrial environments. Featuring 9.5 mm diameter stainless steel wire rope wound through 8 precision-formed coils and secured by high-strength aluminum alloy clamping bars, this isolator supports a maximum static load of 138 kg per mount while maintaining a remarkably compact footprint.

Why All-Metal Construction Matters

Unlike conventional rubber or elastomeric mounts that degrade over time, the JGX-0958D-138A contains zero organic materials. Every component—from the stranded wire rope helix to the retaining bars—is metal. This means:

• Zero Creep or Aging: No material fatigue, no compression set, and no hardening over years of continuous operation. The isolator performs identically on day one and day ten thousand.
• Extreme Temperature Tolerance: Operational from -70°C to +260°C without any change in damping characteristics. Suitable for arctic installations, engine compartments, foundry equipment, and desert solar fields.
• Chemical Immunity: Unaffected by hydraulic fluids, fuels, lubricants, ozone, UV radiation, salt spray, and industrial cleaning agents—substances that rapidly deteriorate rubber-based mounts.
• Radiation and Vacuum Compatible: The all-metal structure withstands environments where polymers outgas or become brittle, making it suitable for vacuum chambers and high-altitude applications.

High Static Load Capacity in Compact Form

With a 138 kg static load rating per mount from a single compact unit, the JGX-0958D-138A offers exceptional load-to-size ratio. This allows engineers to specify fewer isolators per installation, reducing system complexity, weight, and cost. The 8-coil geometry distributes compressive, tensile, and shear loads evenly across the wire rope strands, ensuring consistent performance under multi-axis loading conditions.

Dynamic loads up to 70 kg are effectively damped through the friction-based energy dissipation mechanism inherent to stranded wire rope: as the isolator deflects, individual strands rub against one another, converting kinetic vibration energy into negligible heat without requiring any fluid, gas, or external power source.

Engineered for Harsh Operating Conditions

Mounting Bar Configuration Options

The JGX-0958D-138A is available with two mounting bar materials to suit different application requirements:

• Stainless Steel Bars: Maximum corrosion resistance and strength. Recommended for offshore platforms, marine vessels, chemical processing plants, and outdoor installations with prolonged weather exposure.
• Aluminum Alloy Bars (6061-T6): Lightweight alternative with excellent strength-to-weight ratio. Available with white anodizing for general industrial use or hard anodizing for enhanced surface hardness and wear resistance in high-abrasion environments.

Typical Industrial Applications

The JGX-0958D-138A excels in heavy industrial settings where equipment reliability directly impacts operational uptime:

• HVAC and Compressor Systems: Isolate large centrifugal chillers, reciprocating compressors, and air handling units from building structures to prevent vibration transmission and structural fatigue.
• Power Generation Equipment: Protect generator sets, turbine auxiliary systems, and switchgear cabinets from self-induced vibration and external seismic events.
• Heavy Machinery & Presses: Reduce transmitted forces from stamping presses, injection molding machines, and CNC machining centers to factory floors and adjacent precision equipment.
• Mining and Quarrying Equipment: Withstand abrasive dust, moisture, and continuous shock loading on vibrating screens, crushers, and conveyor drive systems.
• Rail and Transportation: Isolate trackside signaling cabinets, onboard electronics enclosures, and underfloor equipment from rail-induced vibration and impact.
• Offshore and Marine Systems: Protect navigation electronics, communication racks, and mechanical systems aboard commercial vessels and offshore platforms from wave-induced motion and engine vibration.
• Industrial Pump Stations: Dampen vibration from large centrifugal and reciprocating pumps in water treatment, oil and gas pipeline, and chemical transfer applications.

Performance Advantages Over Elastomeric Mounts

• Predictable Degradation-Free Lifetime: While rubber mounts follow a gradual softening-then-hardening degradation curve requiring periodic replacement, the JGX-0958D-138A maintains consistent stiffness and damping coefficients indefinitely.
• No Environmental Sealing Required: Unlike fluid-filled dampers that risk leakage, or elastomers that require protective boots against UV and chemicals, the all-metal design is inherently immune to environmental attack.
• Wide Frequency Range Effectiveness: The non-linear stiffness characteristics of wire rope provide effective isolation across a broader frequency spectrum compared to linear elastic mounts, including attenuation of high-frequency structure-borne noise.
• Fire Resistance: All-metal construction eliminates the fire load and toxic smoke associated with burning rubber mounts—a critical safety consideration for enclosed machinery spaces and tunnel applications.

Rapid Prototyping and Customization

Need a variant with different load ratings, coil counts, or mounting hole patterns? Our in-house engineering team can modify the JGX-0958 series design to match your exact specifications. With rapid prototyping capabilities, custom configurations can be sampled within 2-3 weeks, enabling fast project turnaround without compromising on validation rigor.

Quality Assurance

Every JGX-0958D-138A unit undergoes 100% dimensional inspection and sample lot dynamic testing before shipment. Manufacturing is conducted under ISO 9001:2015 certified quality management systems with full material traceability from raw wire rope spool to finished isolator.

Contact our application engineering team today to discuss your vibration isolation requirements or request a technical datasheet with load-deflection curves for your specific loading configuration.
