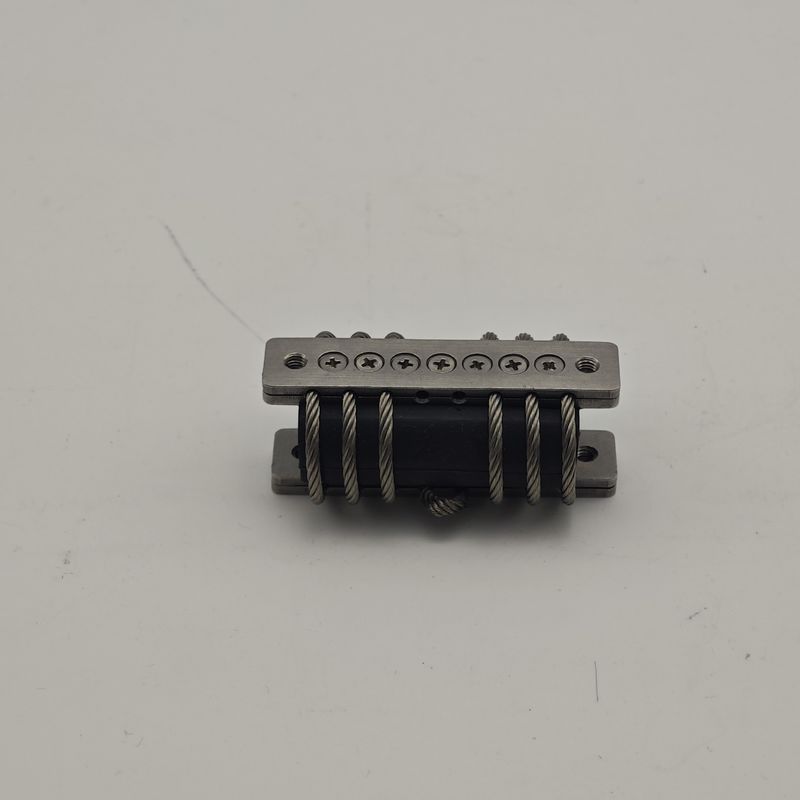

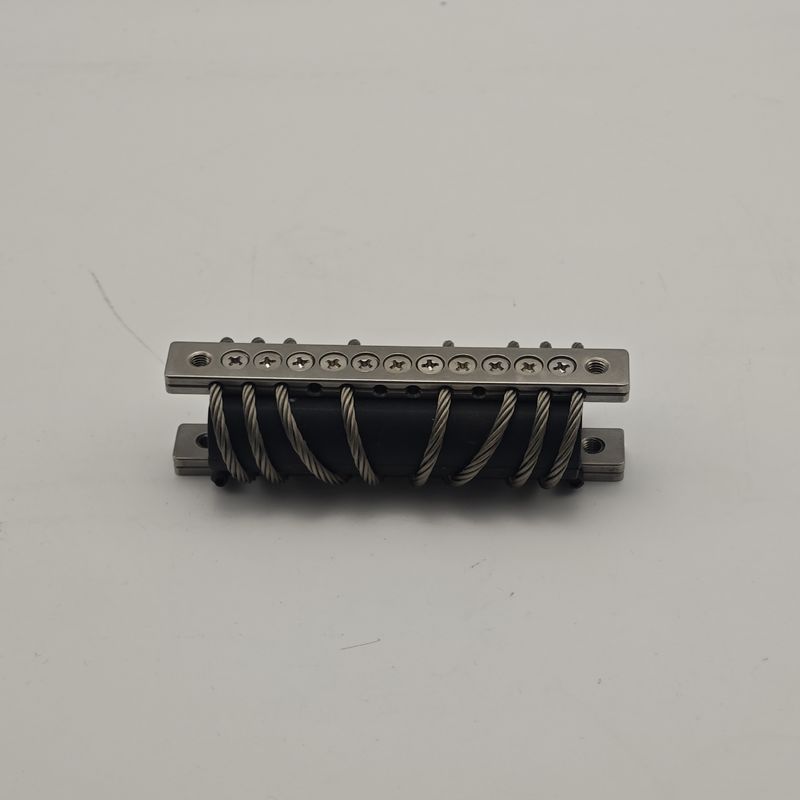

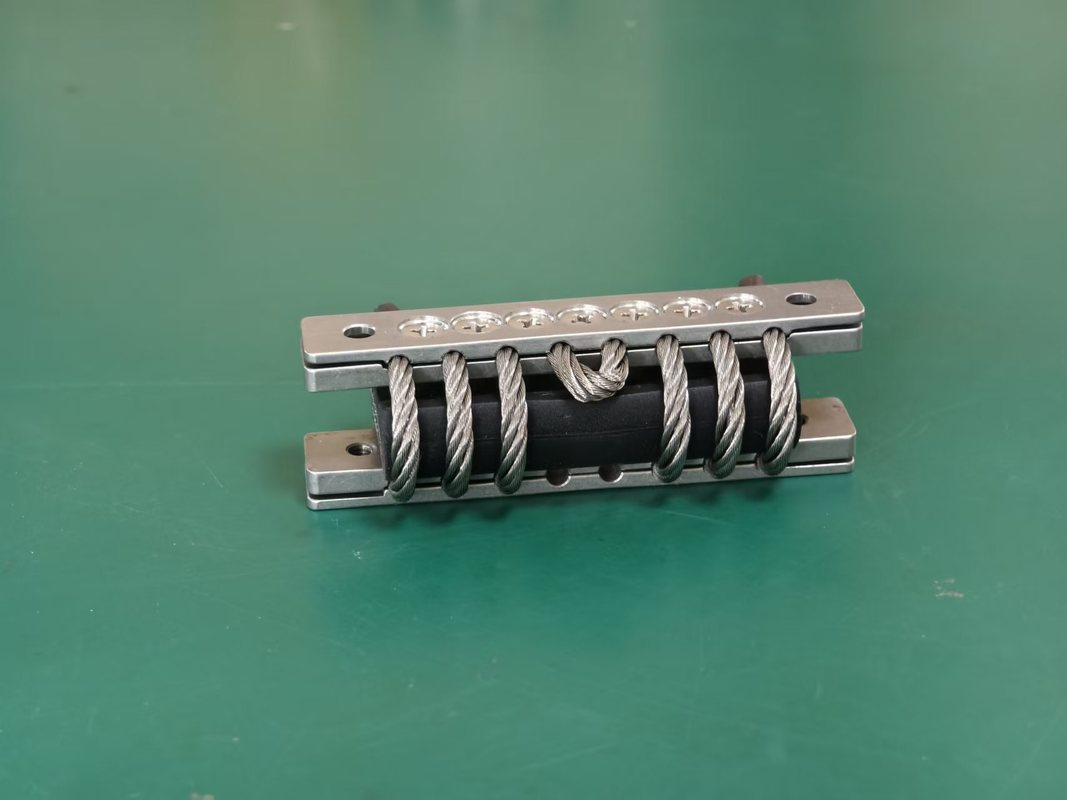

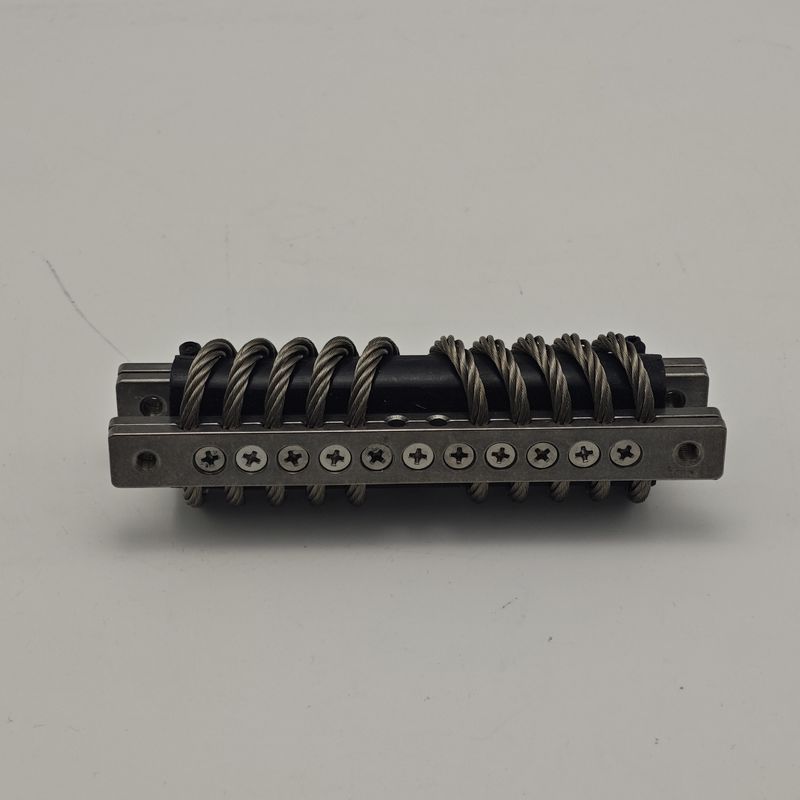

Name: Customizable GX-60A(N) Wire Rope Vibration Isolator with Good Thermal Shock Resistance and All-Metal Structure for Stable Operation
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: جي اكس-60 ايه (ن)
Availability: InStock

المنزل > المنتجات > المنتجات حسب الطلب >

Customizable GX-60A(N) Wire Rope Vibration Isolator with Good Thermal Shock Resistance and All-Metal Structure for Stable Operation

Customizable Size Vibration Isolator,Thermal Shock Resistance Shock Absorber,All-Metal Structure Wire Rope Isolator

Thermal Shock Resistance Shock Absorber

All-Metal Structure Wire Rope Isolator

مكان المنشأ:

الصين

اسم العلامة التجارية:

Hoan

رقم الموديل:

جي اكس-60 ايه (ن)

اتصل بنا

اطلب اقتباس

Customizable GX-60A(N) Wire Rope Vibration Isolator with Good Thermal Shock Resistance and All-Metal Structure for Stable Operation

تفاصيل المنتج

تسويق:

الأسواق الأوروبية والأمريكية

مقاس:

قابلة للتخصيص

شكل:

مخصصة، غير مخصصة

الطباعة:

نعم

عينات مخصصة:

متاح عند الطلب

مقاومة الصدمة الحرارية:

مقاومة جيدة للصدمات الحرارية

طول:

113 م

مادة:

مواد مختلفة متاحة

وقت الإنتاج:

يعتمد على كمية وتعقيد التخصيص

حسب الطلب:

نعم

شحن:

عن طريق البحر

وقت الشحن:

يعتمد على طريقة الشحن والوجهة

درجة حرارة الخدمة:

1000 ℃ -1800 ℃

إبراز:

Customizable Size Vibration Isolator,Thermal Shock Resistance Shock Absorber,All-Metal Structure Wire Rope Isolator

Thermal Shock Resistance Shock Absorber

All-Metal Structure Wire Rope Isolator

شروط الدفع والشحن

الحد الأدنى لكمية

شروط الدفع

خطاب الاعتماد، D/A، D/P، T/T، ويسترن يونيون، موني جرام

منتجات ذات صلة

GX-50A(N) Customized Wire Rope Vibration Isolator with High Fatigue Strength and Thermal Shock Resistance for Long-lasting Durability

احصل على أفضل سعر

Customized GX-40AN Wire Rope Vibration Isolator with 113mm*40mm Size 32.5±mm Thickness and 1000℃-1800℃ Service Temperature

احصل على أفضل سعر

GX-30AN Wire Rope Vibration Isolator with Exceptional Environmental Adaptability, Corrosion Resistant and Good Thermal Shock Resistance

احصل على أفضل سعر

Customized Wire Rope Vibration Isolator for Quiet Operation Stable Equipment Performance with Excellent Damping GX-20AN

احصل على أفضل سعر

اتصل بنا

86-29-88292913

اتصل بنا الآن

وصف المنتج

Customized Products The Ultimate Solution for Vibration and Noise Reduction GX-60AN Wire Rope Vibration Isolators

GX-N Series

Superior Protection, Stable Operation - Exploring Xi'an Hoan Microwave's GX-N Series Wire Rope Vibration Isolators

In the world of precision instruments, high-end equipment, and sensitive electronic devices, even tiny vibrations pose potential threats. Xi'an Hoan Microwave Co., Ltd., a leader in domestic vibration and noise reduction, deeply understands this challenge and has launched its flagship product - the GX-N Series wire rope vibration isolators. This product is more than just a component; it is a "guardian" for the stable operation of your critical equipment.

The core of the GX-N Series lies in its ingenious design. It uses high-quality stainless steel wire rope as the elastic element, formed through precision winding and curing processes. This structure endows it with superior performance unmatched by traditional rubber or spring isolators.

Excellent three-way equal stiffness vibration isolation performance for comprehensive protection from vibrations in any direction
All-metal structure with exceptional environmental adaptability, resisting extreme temperatures, oil, mold, and salt spray
Long service life that far exceeds organic material isolators, ensuring reliability for long-term deployed equipment
Military-grade production standards with strict quality control from material selection to final testing

Whether safeguarding the precision scanning of military radars or maintaining clear imaging of medical imaging equipment, the GX-N Series is a trustworthy choice. Choosing the GX-N means choosing peace of mind and durability.

Structural dimension diagram

Model Specifications

Model	L(mm)	A±0.3	H±1.5	W±1.5	d
GX-10A(N)	55	49	21	26	M3-7H
GX-20A(N)	84	68	29	35	M5-7H
GX-30A(N)	113	97	32.5	40	M5-7H
GX-40A(N)	113	97	32.5	40	M5-7H
GX-50A(N)	113	97	33	40	M5-7H
GX-60A(N)	133	117	31	40	M5-7H

Vibration and impact curve of GX-N series

Vibration

Impact

Technical Parameter Table

Technical Parameter	GX-10A(N)	GX-20A(N)	GX-30A(N)	GX-40A(N)	GX-50A(N)	GX-60A(N)
Pz Nominal Load(N)	Downward Pressure
Resonance Magnification	≤4
High Vibrating Efficiency	≥95
Working Temperature	-55～+120
Shock(Ks)	30g/6ms
Peak Response G	≤3.5km/s2
Vibration (Kv)	Accord with National Military Standard GJB150-16
