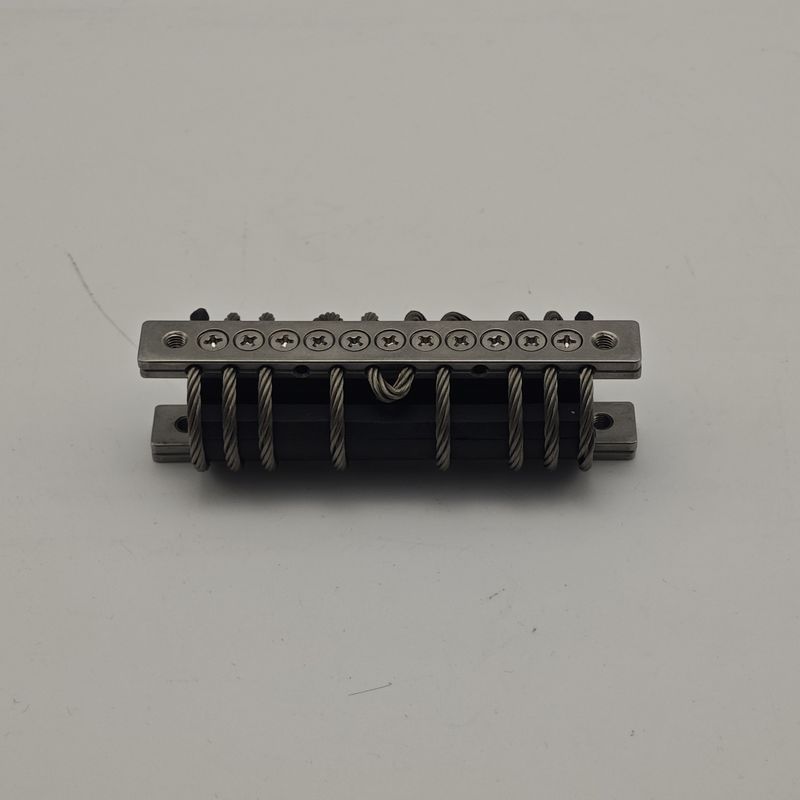

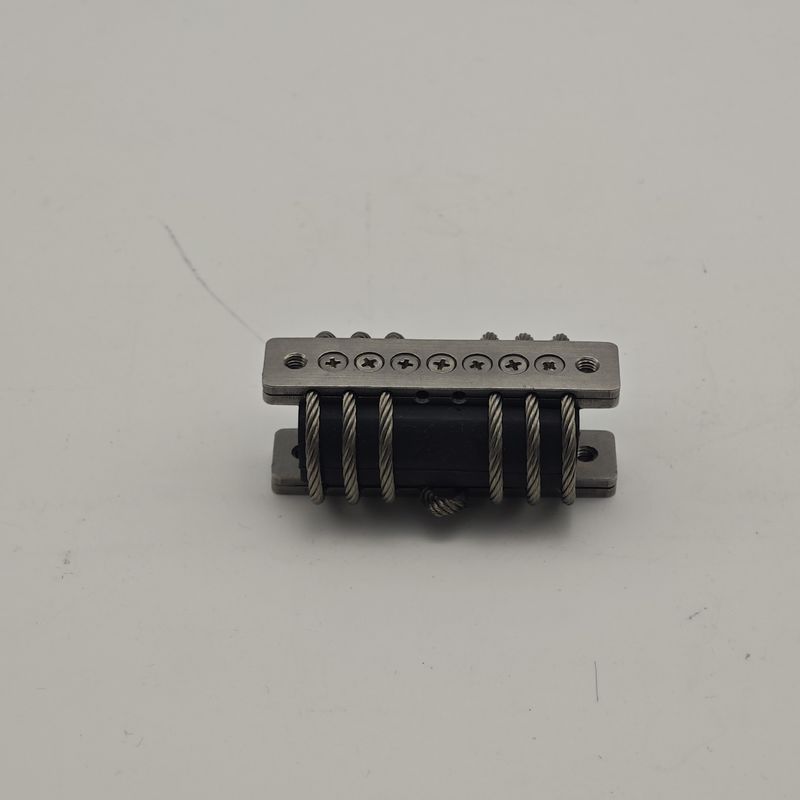

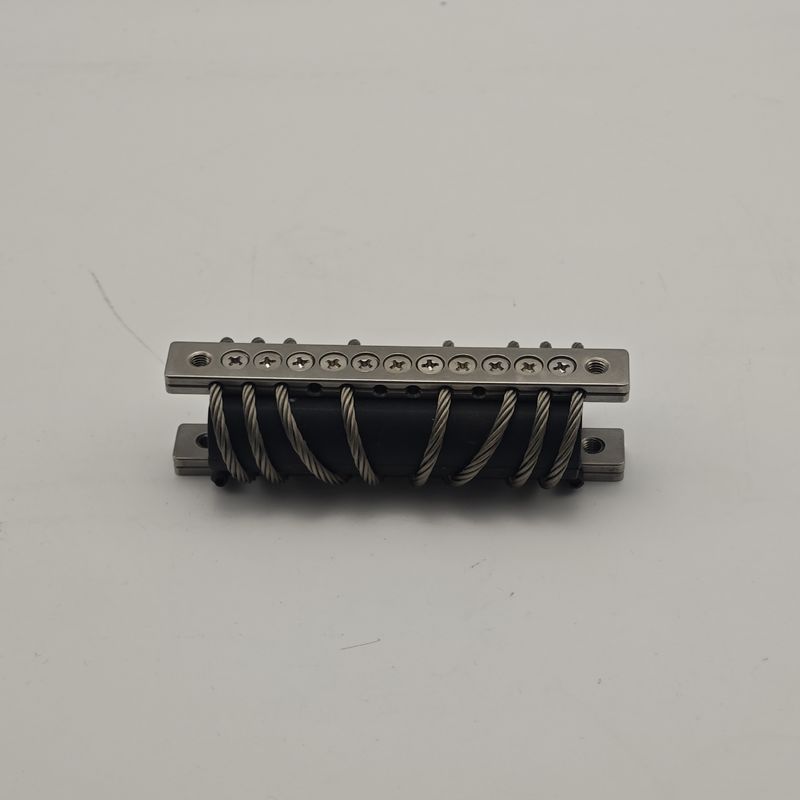

Name: Customized Wire Rope Vibration Isolator for Quiet Operation Stable Equipment Performance with Excellent Damping GX-20AN
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: جي اكس-20 ايه (ن)
Availability: InStock

المنزل > المنتجات > المنتجات حسب الطلب >

Customized Wire Rope Vibration Isolator for Quiet Operation Stable Equipment Performance with Excellent Damping GX-20AN

Quiet Operation Wire Rope Vibration Isolator,Stable Equipment Performance Vibration Isolator,Excellent Damping Performance Shock Absorber

Stable Equipment Performance Vibration Isolator

Excellent Damping Performance Shock Absorber

مكان المنشأ:

الصين

اسم العلامة التجارية:

Hoan

رقم الموديل:

جي اكس-20 ايه (ن)

اتصل بنا

اطلب اقتباس

Customized Wire Rope Vibration Isolator for Quiet Operation Stable Equipment Performance with Excellent Damping GX-20AN

تفاصيل المنتج

مادة:

مواد مختلفة متاحة

درجة حرارة الخدمة:

1000 ℃ -1800 ℃

حسب الطلب:

نعم

الطباعة:

نعم

شكل:

مخصصة، غير مخصصة

مقاومة الصدمة الحرارية:

مقاومة جيدة للصدمات الحرارية

مقاس:

قابلة للتخصيص

الاستقرار الكيميائي:

استقرار كيميائي مرتفع للغاية

الاستخدام:

أطعمة متنوعة، هدايا، قرطاسية

تسويق:

الأسواق الأوروبية والأمريكية

خدمة ما بعد البيع:

قابلة للتخصيص

الكلمة الرئيسية:

مواد مقاومة للحريق

سماكة:

0.15mm

طريقة الدفع:

قابلة للتخصيص

إبراز:

Quiet Operation Wire Rope Vibration Isolator,Stable Equipment Performance Vibration Isolator,Excellent Damping Performance Shock Absorber

Stable Equipment Performance Vibration Isolator

Excellent Damping Performance Shock Absorber

شروط الدفع والشحن

الحد الأدنى لكمية

شروط الدفع

Moneygram ، Western Union ، T/T ، D/P ، D/A ، L/C.

منتجات ذات صلة

GX-50A(N) Customized Wire Rope Vibration Isolator with High Fatigue Strength and Thermal Shock Resistance for Long-lasting Durability

احصل على أفضل سعر

Customized GX-40AN Wire Rope Vibration Isolator with 113mm*40mm Size 32.5±mm Thickness and 1000℃-1800℃ Service Temperature

احصل على أفضل سعر

GX-30AN Wire Rope Vibration Isolator with Exceptional Environmental Adaptability, Corrosion Resistant and Good Thermal Shock Resistance

احصل على أفضل سعر

Customized Wire Rope Vibration Isolator for Quiet Operation Stable Equipment Performance with Excellent Damping GX-20AN

احصل على أفضل سعر

اتصل بنا

86-29-88292913

اتصل بنا الآن

وصف المنتج

GX-N Series Wire Rope Vibration Isolators

Guardian of Quiet Operation - The Ideal Solution for Stable Equipment Performance

Persistent vibration is a hidden threat to precision equipment, causing loose screws, component wear, inaccurate measurements, and increased noise. Xi'an Hoan Microwave's GX-N Series wire rope vibration isolators effectively isolate harmful vibrations, ensuring quiet and stable equipment operation.

Key Features

Excellent damping performance through dry friction between wire rope strands
Dual-action vibration control: isolation through elastic deformation and energy dissipation via internal friction
Effective vibration isolation across wide frequency bands, especially medium and high frequencies
Significantly reduces operational vibration and structural noise in power equipment
Creates stable working platforms for electronic cabinets and precision instruments
Enhances equipment reliability and extends operational lifespan

Structural Dimension Diagram

Dimensions Table

Model	L(mm)	A±0.3	H±1.5	W±1.5	d
GX-10A(N)	55	49	21	26	M3-7H
GX-20A(N)	84	68	29	35	M5-7H
GX-30A(N)	113	97	32.5	40	M5-7H
GX-40A(N)	113	97	32.5	40	M5-7H
GX-50A(N)	113	97	33	40	M5-7H
GX-60A(N)	133	117	31	40	M5-7H

Performance Characteristics

Vibration Curve

Impact Curve

Technical Specifications

Technical Parameter	Specification
Nominal Load (Pz)	Downward Pressure
Resonance Magnification	≤4
High Vibrating Efficiency	≥95%
Working Temperature	-55°C to +120°C
Shock (Ks)	30g/6ms
Peak Response G	≤3.5km/s²
Vibration (Kv)	Complies with National Military Standard GJB150-16

The GX-N Series has become the trusted vibration isolation solution for numerous leading enterprises across industries, ensuring equipment operates efficiently in tranquility.
